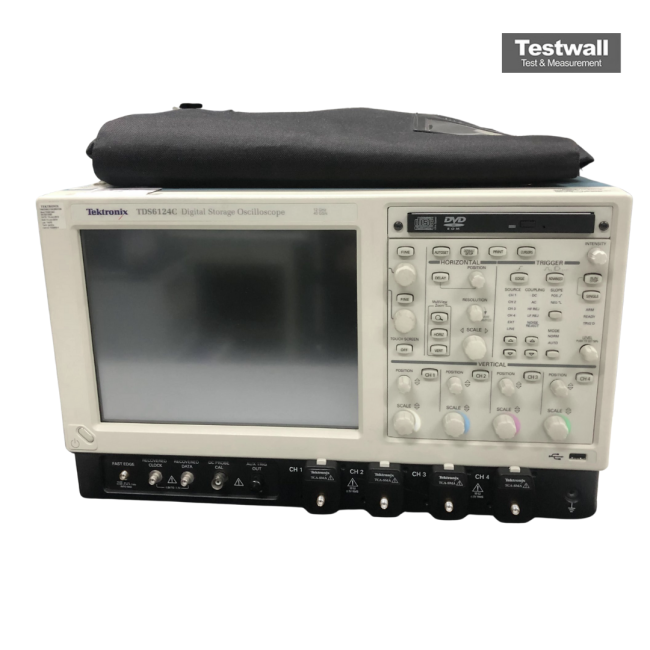

Tektronix TDS6124C
| Attribute | Value |
|---|---|
| Bandwidth | 12 GHz |
| Sample Rate | 40 GS/s on 2 channels, 20 GS/s on 4 channels |
| Number of Channels | 4 |
| Record Length | Up to 64 M points |
| Vertical Resolution | 8 bits |
| Rise Time | 29.2 ps |
| Input Impedance | 50 Ω |
| Time Base Range | 200 ps/div to 40 s/div |
| Display | 10.4 inch color TFT LCD |
| Connectivity | USB, GPIB, LAN (10/100Base-T Ethernet) |
Tektronix TDS6124C Options:
Options available for the Tektronix TDS5000 / TDS6000 / TDS7000 / CSA7000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS6124C - 2M - Extended record length
- TDS6124C - 3M - Extended record length
- TDS6124C - SM - Serial communication mask testing
- TDS6124C - JT3 - TDSJIT3 jitter and timing analysis
- TDS6124C - PWR - TDSPWR3 power measurement and analysis
- TDS6124C - USB - TDSUSB2 USB 2.0 compliance testing
- TDS6124C - ET3 - TDSET3 Ethernet compliance testing
- TDS6124C - 1K - Instrument cart
- TDS6124C - 1R - Rack mount kit
The Tektronix TDS6124C is a 12 GHz, 4-channel digital oscilloscope offering 40 GS/s sampling on two channels and 64 Msamples record length, ideal for capturing high-speed signals with unmatched accuracy. Its customizable MyScope control windows and DSP filters enhance productivity and signal fidelity, enabling effective signal analysis and debugging in advanced electronic systems.
This oscilloscope is perfect for next-gen design validation, serial data compliance testing, and data acquisition applications requiring precise waveform analysis.
Testwall can supply the used Tektronix TDS6124C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS6124C.
