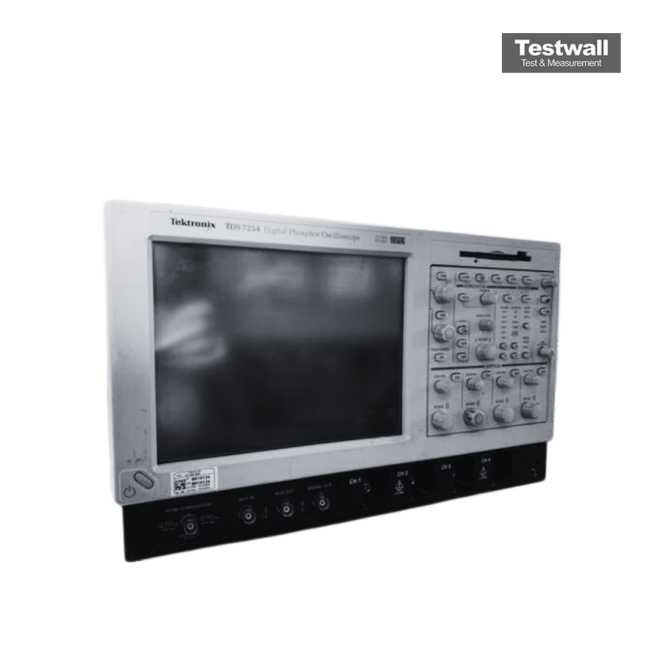

Tektronix TDS7254
| Attribute | Value |
|---|---|
| Bandwidth | 2.5 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 GS/s (single channel), 10 GS/s (two channels), 5 GS/s (four channels) |
| Record Length | Up to 16 million points per channel |
| Vertical Resolution | 8-bit (up to 11-bit with Hi Res mode) |
| Rise Time | 175 ps |
| Input Impedance | 50 Ω or 1 MΩ (with 20 pF) |
| Display | 10.4-inch color LCD touchscreen |
| Operating System | Windows 2000 |
| Connectivity | GPIB, Ethernet (10/100Base-T), USB, CD-RW drive |
Tektronix TDS7254 Options:
- TDS7254 - 1M - Acquisition Memory: 2 Msamples max, 500 ksamples/ch
- TDS7254 - 2M - Acquisition Memory: 8 Msamples max, 2 Msamples/ch
- TDS7254 - 3M - Acquisition Memory: 16 Msamples max, 4 Msamples/ch
- TDS7254 - 4M - Acquisition Memory: 32 Msamples max, 8 Msamples/ch
- TDS7254 - 1K - Mounting: K4000 Scope cart
- TDS7254 - 1R - Mounting: Rackmount kit
- TDS7254 - J1 - Software: TDSJIT2 Jitter Analysis Software
- TDS7254 - J2 - Software: TDSDDM2 Disk Drive Analysis Software
- TDS7254 - 30 - Probe Option: No Probes
- TDS7254 - 33 - Probe Option: Add (1) P6158 3 GHz, 20x Low C Probe
- TDS7254 - 34 - Probe Option: Add (1) P6247 1.0 GHz Differential Probe
- TDS7254 - 35 - Probe Option: Add (1) P6243 1.0 GHz Active Probe
- TDS7254 - 36 - Probe Option: Add (1) P6139A 500 MHz, 10x Passive Probe
- TDS7254 - 37 - Probe Option: Add (1) P6245 1.5 GHz Active Probe
- TDS7254 - 39 - Probe Option: Add (1) P6248 1.7 GHz Differential Probe
- TDS7254 - 51 - Probe Option: Add (1) P7240 4 GHz Active Probe
- TDS7254 - 52 - Probe Option: Add (1) P7330 3 GHz Differential Probe
- TDS7254 - A1 - Power Cord: Universal European power cord (220 V, 50 Hz)
- TDS7254 - A2 - Power Cord: UK power cord (240 V, 50 Hz)
- TDS7254 - A3 - Power Cord: Australia power cord (240 V, 50 Hz)
- TDS7254 - A5 - Power Cord: Switzerland power cord (220 V, 50 Hz)
- TDS7254 - A99 - Power Cord: No power cord
- TDS7254 - AC - Power Cord: China power cord
- TDS7254 - D1 - Service: Calibration data report
- TDS7254 - C3 - Service: Additional 2 years of calibration
- TDS7254 - D3 - Service: Calibration data report for Option C3
- TDS7254 - R3 - Service: Additional 2 years of repair
| Model | TDS7254 |
|---|
The Tektronix TDS7254 is a 4-channel digital phosphor oscilloscope featuring a 2.5 GHz analog bandwidth and up to 20 GS/s sampling rate for a single channel. With high signal fidelity, 160 ps rise time, and 400,000 points per channel standard memory, it's ideal for advanced signal integrity analysis in high-speed digital and RF applications.
Designed with FastAcq mode and advanced triggering, the TDS7254 captures over 400,000 waveforms per second. It includes deep memory options, low-noise performance, and independent digitizers for each channel to ensure accurate multi-channel timing.
Testwall can supply the used Tektronix TDS7254, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS7254.
