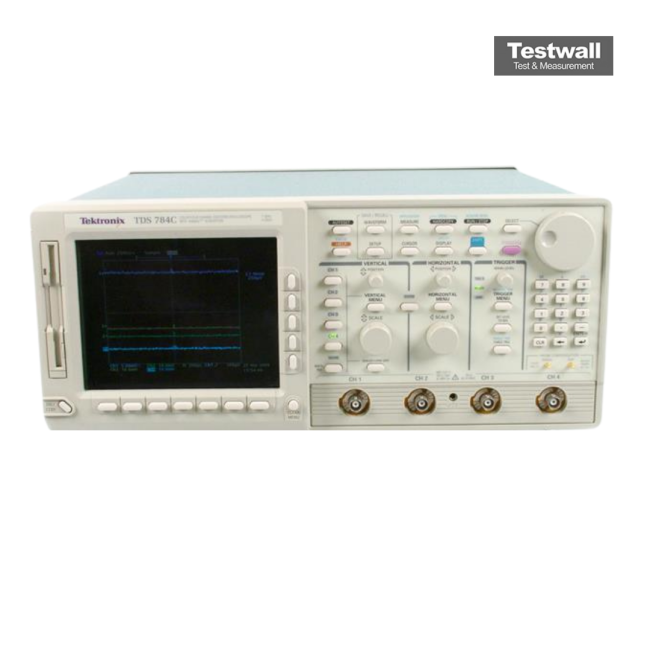

Tektronix TDS784C
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 4 GS/s (single channel), 2 GS/s (two channels), 1 GS/s (four channels) |
| Number of Channels | 4 |
| Record Length | Up to 15,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 200 ps/div to 10 s/div |
| Rise Time | 350 ps (typical) |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD display |
Tektronix TDS784C Options:
- TDS784C - Opt. 05 - Add video trigger (NTSC, PAL, HDTV, FlexFormat™)
- TDS784C - Opt. 1M - Add 130 K/channel memory length (500 K max on TDS 784C)
- TDS784C - Opt. 2M - Add 2M/channel memory length (8 M max on TDS 784C); includes internal hard disk drive
- TDS784C - Opt. HD - Internal 170 MB hard disk drive
- TDS784C - Opt. 2C - Communication Signal Analyzer; includes comm triggers and communication mask testing
- TDS784C - Opt. 3C - Short-wavelength (Fibre Channel FC133, FC266, FC513, FC1063) Optical Reference Receiver; includes P6701B and system calibration
- TDS784C - Opt. 4C - Long-wavelength (SONET/SDH OC1/STM0, OC3/STM1, OC12/STM4) Optical Reference Receiver; includes P6703B and system calibration
- TDS784C - Opt. 24 - Add 4 each P6139A passive probes
- TDS784C - Opt. 26 - Add 4 each P6245 active probes
- TDS784C - Opt. 1K - Add K420 scope cart
- TDS784C - Opt. 1R - Rackmount kit
- TDS784C - Opt. A1 - European power cord (220 V, 50 Hz)
- TDS784C - Opt. A2 - UK power cord (240 V, 50 Hz)
- TDS784C - Opt. A3 - Australian power cord (240 V, 50 Hz)
- TDS784C - Opt. A4 - North American power cord (240 V, 60 Hz)
- TDS784C - Opt. A5 - Swiss power cord (220 V, 50 Hz)
- TDS784C - Opt. B2 - Hardcopy version of the programmer's manual (070-9876-00)
- TDS784C - Opt. L1 - Substitute French user manual (070-9872-00) for English user manual
- TDS784C - Opt. L3 - Substitute German user manual (070-9873-00) for English user manual
- TDS784C - Opt. L5 - Substitute Japanese user manual (070-9870-00) for English user manual
- TDS784C - Opt. L9 - Substitute Korean user manual (070-9871-00) for English user manual
- TDS784C - Opt. 3I/3P - Color printer and cable (220 V/110 V)
- TDS784C - Opt. C3 - Three years of Calibration Services
- TDS784C - Opt. C5 - Five years of Calibration Services
- TDS784C - Opt. D3 - Test Data (requires Opt. C3)
- TDS784C - Opt. D5 - Test Data (requires Opt. C5)
- TDS784C - Opt. R5 - Repair warranty extended to cover five years
| Model | TDS784C |
|---|
The Tektronix TDS784C is a high-performance digital oscilloscope offering 1 GHz bandwidth, 4 channels, and a 4 GS/s sample rate, featuring 50 kPts record length, color display, and up to 400,000 waveforms per second with InstaVu™ acquisition. It supports advanced triggering, automatic measurements, FFT, histograms, and comprehensive communication signal analysis including SONET/SDH and Fibre Channel.
Ideal for advanced electronic design, debugging, and R&D, it provides 1% vertical accuracy, up to 13-bit resolution with Hi-res, 1 ns peak detect, and storage via floppy or hard disk. It’s equipped with GPIB programmability for seamless integration.
Testwall can supply the used Tektronix TDS784C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS784C.
