Tektronix TDS784D
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 4 GS/s (single channel), 2 GS/s (two channels), 1 GS/s (four channels) |
| Number of Channels | 4 |
| Record Length | Up to 15,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 200 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.2-inch color LCD display |
| Connectivity/Interfaces | GPIB, RS-232, Centronics (parallel), floppy disk drive |
Tektronix TDS784D Options:
- TDS784D - Opt. 05 - Add video trigger (NTSC, PAL, HDTV, FlexFormat™)
- TDS784D - Opt. 1M - Add 130 K/channel memory length (500 K max)
- TDS784D - Opt. 2M - Add 2 M/channel memory length (8 M max); includes internal hard disk drive
- TDS784D - Opt. 2C - Communication Signal Analyzer; includes comm triggers and communication mask testing
- TDS784D - Opt. 3C - Short-wavelength (Fibre Channel FC133, FC266, FC513, FC1063) Optical Reference Receiver; includes P6701B and system calibration
- TDS784D - Opt. 4C - Long-wavelength (SONET/SDH OC1/STM0, OC3/STM1, OC12/STM4) Optical Reference Receiver; includes P6703B and system calibration
- TDS784D - Opt. 33 - Add 1 each P6158 low capacitance probe
- TDS784D - Opt. 34 - Add 1 each P6247 differential probe
- TDS784D - Opt. 36 - Add 1 each P6139A passive probe
- TDS784D - Opt. 37 - Add 1 each P6245 active probe
- TDS784D - Opt. 1K - Add K420 scope cart
- TDS784D - Opt. 1R - Rackmount kit
- TDS784D - Opt. A1 - European power cord (220 V, 50 Hz)
- TDS784D - Opt. A2 - UK power cord (240 V, 50 Hz)
- TDS784D - Opt. A3 - Australian power cord (240 V, 50 Hz)
- TDS784D - Opt. A4 - North American power cord (240 V, 60 Hz)
- TDS784D - Opt. A5 - Swiss power cord (220 V, 50 Hz)
- TDS784D - Opt. L1 - Substitute French user manual for English user manual
- TDS784D - Opt. L3 - Substitute German user manual for English user manual
- TDS784D - Opt. L5 - Substitute Japanese user manual for English user manual
- TDS784D - Opt. L9 - Substitute Korean user manual for English user manual
- TDS784D - Opt. C3 - Three years of Calibration Services
- TDS784D - Opt. D1 - Cal Data Report
- TDS784D - Opt. D3 - Test Data (requires Opt. C3)
| Model | TDS784D |
|---|

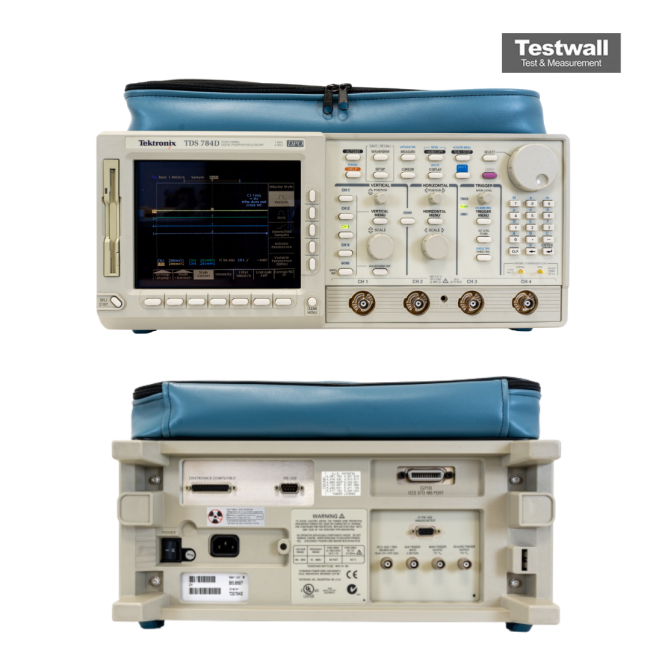

The Tektronix TDS784D Digital Phosphor Oscilloscope features 1 GHz bandwidth and up to 4 GS/s sample rate, capturing 200,000 waveforms per second across 4 channels. With 1% vertical accuracy, 1 ns peak detect, and 8-bit resolution (expandable to 13 bits), it reveals intricate signal behavior. Its record length extends to 8 M points, supported by advanced triggering, FFT analysis, and histogram statistics for thorough signal evaluation.
Designed for intuitive operation, the TDS784D includes a graphical UI with 200+ icons, a color monitor, and online help. Its flexible triggering captures complex digital and video signals, with support for communication standards like AMI, NRZ, and Ethernet.
Testwall can supply the used Tektronix TDS784D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS784D.
