Tektronix TDS8000B
| Attribute | Value |
|---|---|
| Bandwidth | Up to 70 GHz (with appropriate sampling modules) |
| Sample Rate | 200 kS/s equivalent-time sampling |
| Number of Channels | Up to 4 channels (with dual-channel sampling modules) |
| Timebase Range | 10 ps/div to 1 ms/div |
| Vertical Resolution | 8-bit resolution (11-bit with averaging) |
| Record Length | Up to 131,072 points per channel |
| Rise Time | As low as 4.5 ps (with 80E04 module) |
| Display | 10.4-inch color TFT LCD display |
| Connectivity | GPIB, Ethernet (10/100Base-T), USB ports |
| Operating System | Windows XP Embedded |
Tektronix TDS8000B Options:
Options available for the Tektronix Sampling oscilloscope mainframe. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS8000B - 80E0x - Electrical sampling modules (e.g. 80E03, 80E04, 80E09, 80E10)
- TDS8000B - 80C0x - Optical sampling modules (e.g. 80C02, 80C08, 80C10, 80C12)
- TDS8000B - 80A0x - Accessory modules (e.g. 80A05 clock recovery, 80A06 pattern sync)
- TDS8000B - 82A04 - Phase reference module (low-jitter timebase)
- TDS8000B - 80SJNB - Jitter, noise and BER analysis software (Essentials / Advanced)
- TDS8000B - 80SICON - IConnect TDR and S-parameter software
- TDS8000B - ADVTRIG - Advanced trigger (DSA8300)

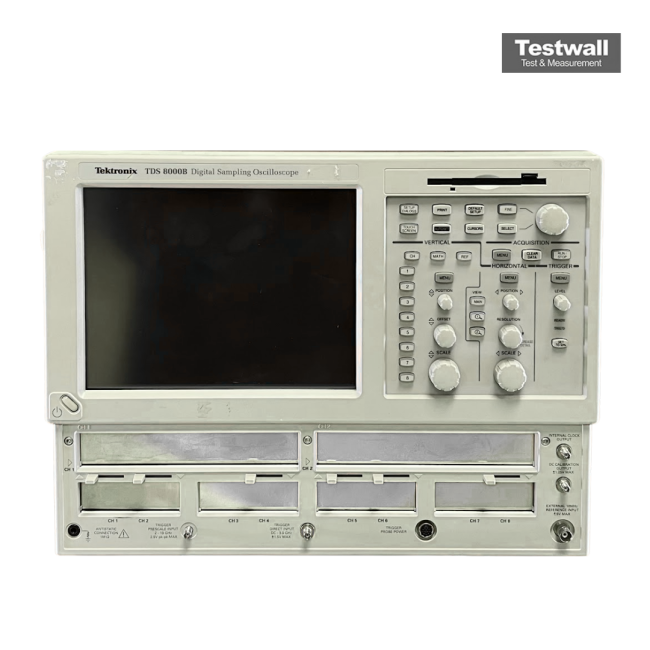

The Tektronix TDS8000B Digital Sampling Oscilloscope delivers bandwidth up to 70+ GHz, enabled by modular plug-ins. It features high-resolution measurements, excellent trigger jitter performance, and robust horizontal timebase stability. The system includes up to eight acquisition channels, automatic measurement capability, and a 10.4-inch Windows-based GUI for enhanced user interaction.
Ideal for semiconductor testing, TDR-based circuit characterization, and high-speed data communication analysis, the TDS8000B ensures exceptional measurement precision and data fidelity across a wide range of applications.
Testwall can supply the used Tektronix TDS8000B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS8000B.
