Tektronix
Tektronix TFS3031
850 & 1310nm Multimode OTDR
3 GHz Bandwidth
9 kHz to 3 GHz Frequency Range
Color LCD touchscreen Display Type
-148 dBm displayed average noise level (DANL) Dynamic Range
-98 dBc/Hz at 10 kHz offset Phase Noise
| Attribute | Value |
|---|---|
| Bandwidth | 3 GHz |
| Frequency Range | 9 kHz to 3 GHz |
| Display Type | Color LCD touchscreen |
| Dynamic Range | -148 dBm displayed average noise level (DANL) |
| Phase Noise | -98 dBc/Hz at 10 kHz offset |
| Resolution Bandwidth (RBW) | 10 Hz to 3 MHz |
| Amplitude Accuracy | ±0.5 dB |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Tektronix TFS3031 Options:
- TFS3031 - Opt. 01 - Single wavelength 850 nm (Multimode, 62.5 µm GI Fiber)
- TFS3031 - Opt. 03 - Dual wavelength 850/1300 nm (Multimode, 62.5 µm GI Fiber)
- TFS3031 - Opt. 04 - Single wavelength 1310 nm (Singlemode, ITU-T G.652)
- TFS3031 - Opt. 06 - Dual wavelength 1310/1550 nm (Singlemode, ITU-T G.652)
- TFS3031 - Opt. 10 - Dual wavelength 1310/1550 nm extended range (Singlemode, ITU-T G.652)
- TFS3031 - Opt. 12 - Single wavelength 1625 nm (Singlemode, ITU-T G.652)
- TFS3031 - Opt. A1 - International Power Plug: Universal Euro 220 V
- TFS3031 - Opt. A2 - International Power Plug: United Kingdom 240 V
- TFS3031 - Opt. A3 - International Power Plug: Australia 240 V
- TFS3031 - Opt. A4 - International Power Plug: N. American 240V, 60 Hz
- TFS3031 - Opt. A5 - International Power Plug: Switzerland 220 V
- TFS3031 - Opt. A6 - International Power Plug: Japan 110 V
- TFS3031 - Opt. L1 - Language Option: French
- TFS3031 - Opt. L2 - Language Option: Italian
- TFS3031 - Opt. L3 - Language Option: German
- TFS3031 - Opt. L4 - Language Option: Spanish
- TFS3031 - Opt. L5 - Language Option: Japanese
- TFS3031 - Opt. L6 - Language Option: Portuguese
- TFS3031 - Opt. L7 - Language Option: Simple Chinese
- TFS3031 - Opt. L8 - Language Option: Standard Chinese
- TFS3031 - Opt. LF - Language Option: Finnish
- TFS3031 - Opt. LD - Language Option: Dutch
- TFS3031 - Opt. R3 - Repair warranty extended to cover three years
- TFS3031 - Opt. R5 - Repair warranty extended to cover five years
- TFS3031 - Opt. 11 - 3.5 in. Disk Drive
- TFS3031 - Opt. 19 - Mini-keyboard
- TFS3031 - Opt. 1D - Test Data Sheet
- TFS3031 - Opt. 1S - FMTAP™ Software
- TFS3031 - Opt. 1T - Hard Transit Case
- TFS3031 - Opt. 2T - Optical LED Source, multimode 850/1300 nm reference source (TOP130)
- TFS3031 - Opt. 3T - Optical Laser Source, singlemode 1310 nm reference source (TOP140)
- TFS3031 - Opt. 5T - Optical Power Meter 850/1310/1550 nm (TOP200)
- TFS3031 - Opt. 6T - Visual Fault Finder 635 nm (TOP300)
- TFS3031 - Opt. 7T - Optical Laser Source, singlemode 1310/1550 nm reference source (TOP160)
- TFS3031 - Opt. 8T - High Power Optical Power Meter 980/1310/1550 nm (TOP220)
- TFS3031 - Opt. 9T - Adjustable Optical Attenuator, singlemode 0-35 dB (TOP400)
- TFS3031 - Opt. AN - LAN Configuration: 850/1300 nm multimode OTDR port, 3.5 in. disk drive, ST connector, FMTAP software, Hard travel case
- TFS3031 - Opt. AX - Installer Configuration: 850/1300 nm multimode port, 1310/1550 nm singlemode OTDR port, 3.5 in. disk drive, ST connector on multimode, FC connector on singlemode, FMTAP software, Hard travel case
- TFS3031 - Opt. 20 - Multimode Connector: Biconic
- TFS3031 - Opt. 21 - Multimode Connector: FC/PC
- TFS3031 - Opt. 22 - Multimode Connector: D4/PC
- TFS3031 - Opt. 24 - Multimode Connector: ST/PC
- TFS3031 - Opt. 25 - Multimode Connector: DIN/PC 47256
- TFS3031 - Opt. 26 - Multimode Connector: DIAMOND 3.5
- TFS3031 - Opt. 28 - Multimode Connector: SC/PC
- TFS3031 - Opt. 30 - Singlemode Connector: Biconic
- TFS3031 - Opt. 31 - Singlemode Connector: FC/PC
- TFS3031 - Opt. 32 - Singlemode Connector: D4/PC
- TFS3031 - Opt. 34 - Singlemode Connector: ST/PC
- TFS3031 - Opt. 35 - Singlemode Connector: DIN/PC 47256
- TFS3031 - Opt. 36 - Singlemode Connector: DIAMOND 3.5
- TFS3031 - Opt. 38 - Singlemode Connector: SC/PC
- TFS3031 - Opt. 41 - Singlemode Connector: FC/APC
- TFS3031 - Opt. 42 - Singlemode Connector: SC/APC
- TFS3031 - Opt. 44 - Singlemode Connector: ST/APC
- TFS3031 - Opt. 45 - Singlemode Connector: DIN/APC
| Model | TFS3031 |
|---|

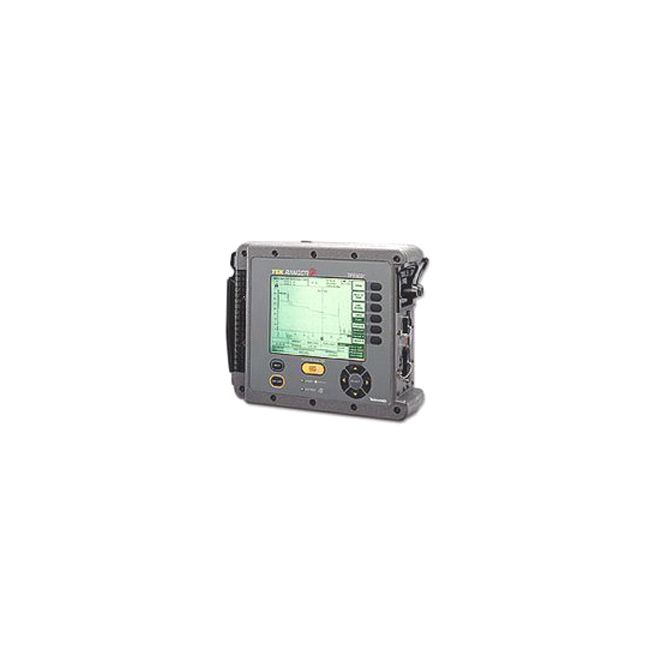

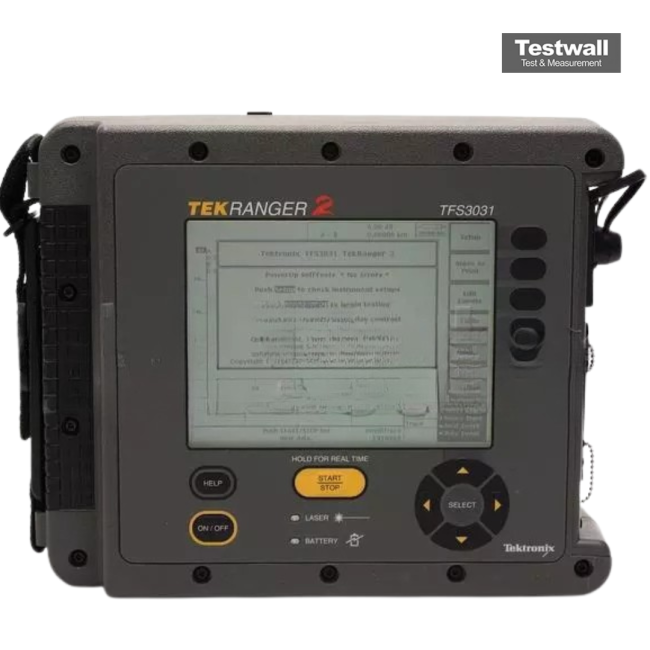

The Tektronix TekRanger 2 TFS3031 mini-OTDR features IntelliTrace™ Automated Fiber Analysis, offering accurate singlemode fiber testing in rugged environments. With auto-optimized parameters, it delivers exceptional dynamic range and resolution, locating events at 10m and fiber ends at 70km. A high-contrast display, NIST-traceable measurements, and comprehensive connectivity enhance field performance.
Ideal for installation, maintenance, and restoration of optical fiber networks, the TFS3031 ensures efficient testing with one-button operation and flexible data storage options via internal memory or floppy disk.
Testwall can supply the used Tektronix TekRanger 2 TFS3031, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TekRanger 2 TFS3031.
