Tektronix
Tektronix THP0301
Passive Voltage Probe, 300 MHz 10X
500 MHz Bandwidth
Up to 30 A RMS Current Measurement Range
10 mA/div minimum Sensitivity
50 A peak Maximum Peak Current
100 mV/A Output
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Current Measurement Range | Up to 30 A RMS |
| Sensitivity | 10 mA/div minimum |
| Maximum Peak Current | 50 A peak |
| Output | 100 mV/A |
| Probe Type | AC/DC Current Probe |
| Connector Type | BNC |
| Power Supply | Requires TCP0030A or TCPA300 amplifier |
| Operating Temperature | 0°C to +50°C |
| Conductor Size | Up to 10 mm diameter |

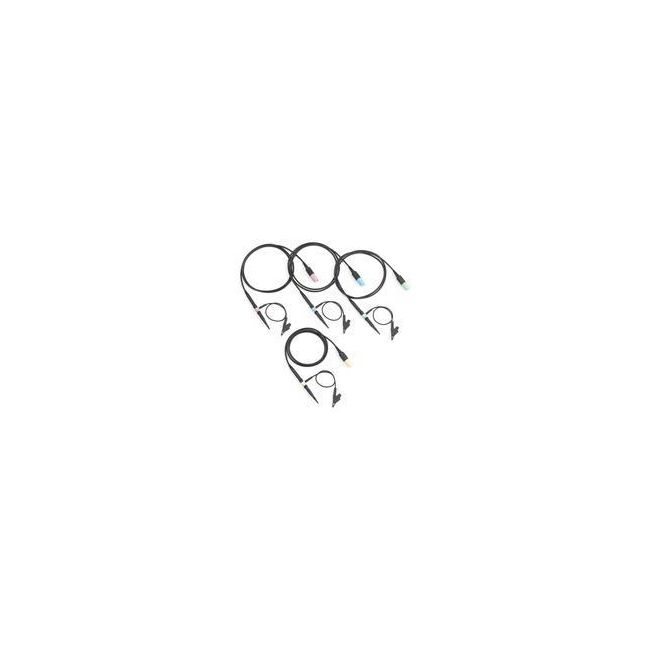

Tektronix THP0301 Options:
- THP0301 - Y - (Yellow) DC to 300 MHz, 10X high-voltage probe
- THP0301 - B - (Blue) DC to 300 MHz, 10X high-voltage probe
- THP0301 - M - (Magenta) DC to 300 MHz, 10X high-voltage probe
- THP0301 - G - (Green) DC to 300 MHz, 10X high-voltage probe
| Model | THP0301 |
|---|
The Tektronix THP0301 is a 300 MHz, 10X passive voltage probe with 10 MΩ input resistance, optimized for THS3000 series oscilloscopes and ideal for a wide voltage range from millivolts to kilovolts.
Color-coded for clarity and equipped with a CAT III safety rating, the THP0301 supports applications from micro-electronics to medium-voltage power systems, ensuring safe and precise measurements.
Testwall can supply the used Tektronix THP0301, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix THP0301.
