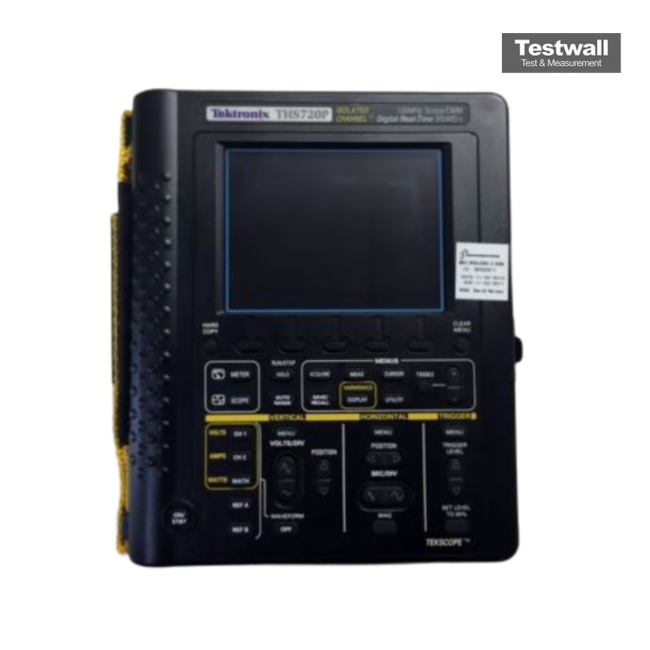

Tektronix THS720
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 250 MS/s |
| Record Length | 2500 points per channel |
| Vertical Sensitivity | 5 mV/div to 100 V/div |
| Input Impedance | 1 MΩ in parallel with 15 pF |
| Maximum Input Voltage | 600 V CAT II (with probe) |
| Display | Backlit LCD, 64 x 128 pixel |
| Battery Life | Up to 2 hours with NiMH battery pack |
| DMM Functions | AC/DC Voltage, AC/DC Current, Resistance, Diode, Continuity, Frequency |
| Model | THS720 |
|---|
The Tektronix THS720 is a 100 MHz, 2-channel handheld digital oscilloscope that integrates a True RMS DMM. It features 500 MS/s sampling rate per channel, dual digitizers, external trigger, advanced delay/pulse/video triggering, and 21 automatic measurements. Its backlit display, 8 ns glitch capture, and full floating isolated channels ensure safe, precise diagnostics even up to 600 VRMS.
Ideal for field or bench use in electronics and power applications, the THS720 provides versatile signal analysis and data logging, supporting RS-232 communication and comprehensive triggering capabilities.
Testwall can supply the used Tektronix THS720, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix THS720.
