Tektronix

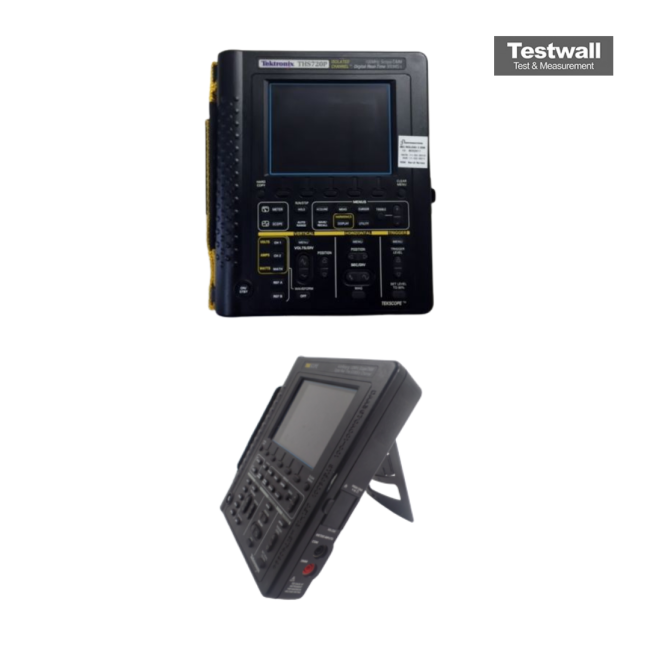

Tektronix THS720P
ScopeMeter, 100 MHz 2 canali, 500 MS / s, palmare
100 MHz Bandwidth
2 Channels
500 MS/s Sample Rate
2500 points per channel Record Length
5 mV/div to 100 V/div Vertical Sensitivity
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 2 |
| Sample Rate | 500 MS/s |
| Record Length | 2500 points per channel |
| Vertical Sensitivity | 5 mV/div to 100 V/div |
| Power Measurement | Built-in power analysis including watts, VA, VAR, and power factor |
| Display | Backlit LCD, 240 x 240 pixels |
| Battery Life | Approximately 2 hours with standard battery pack |
| Input Impedance | 1 MΩ in parallel with 15 pF |
| Isolation | 600 V CAT II, fully isolated inputs between channels and ground |
| Model | THS720P |
|---|
Tektronix THS720P is a dual-channel, 100 MHz oscilloscope and power analyzer with 500 MS/s sampling rate. It offers harmonic analysis, power measurements, PWM motor drive triggering, and glitch capture down to 8 ns.
It includes 21 automatic measurements, RS-232 programmability, full-floating isolated channels, and an integrated DMM with datalogger.
Testwall can supply the used Tektronix THS720P, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix THS720P.
