Tektronix THS730A
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Sample Rate | 1 GS/s |
| Number of Channels | 2 |
| Record Length | 2500 points per channel |
| Vertical Resolution | 8-bit |
| Input Impedance | 1 MΩ in parallel with 13 pF |
| Display Type | Backlit LCD |
| Battery Life | Up to 2 hours with standard battery pack |
| Multimeter Functions | AC/DC Voltage, AC/DC Current, Resistance, Diode, Continuity |
| Safety Rating | CAT II 600V, CAT III 300V |
Tektronix THS730A Options:
- THS730A - L0 - English User Manual
- THS730A - L1 - French User Manual
- THS730A - L2 - Italian User Manual
- THS730A - L3 - German User Manual
- THS730A - L4 - Spanish User Manual
- THS730A - L5 - Japanese User Manual
- THS730A - L6 - Portuguese User Manual
- THS730A - L7 - Simplified Chinese User Manual
- THS730A - L8 - Traditional Chinese User Manual
- THS730A - L9 - Korean User Manual
- THS730A - L10 - Russian User Manual
- THS730A - A0 - US Plug, 115 V, 60 Hz
- THS730A - A1 - Euro Plug, 220V, 50 Hz
- THS730A - A2 - UK Plug, 240V, 50 Hz
- THS730A - A3 - Australian Plug, 240V, 50 Hz
- THS730A - A6 - Japanese Plug, 100V, 110/120 Volt, 60 Hz
| Model | THS730A |
|---|

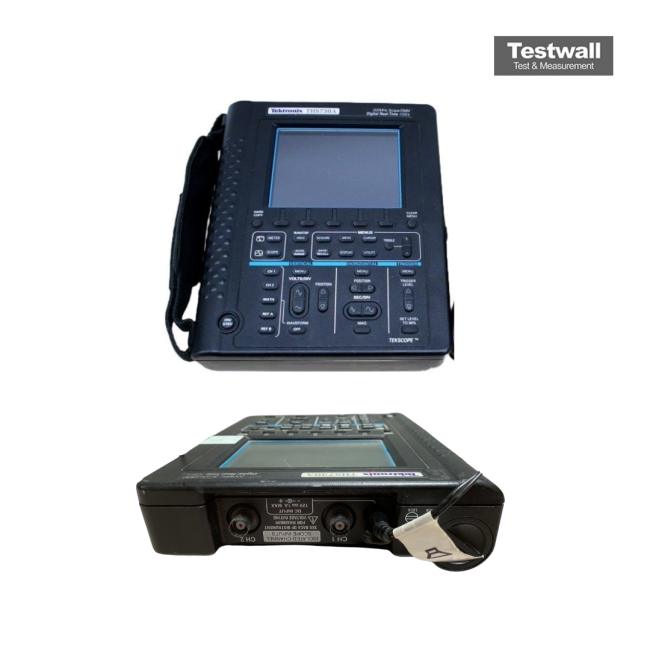

The Tektronix THS730A is a rugged, battery-powered oscilloscope/DMM featuring a 200/100 MHz bandwidth, 1 GS/s and 500 MS/s sampling rates per channel, and dual digitizers. It includes a high-resolution backlit display, True RMS DMM, external trigger, and advanced triggering capabilities such as delay, pulse width, and video. With isolated, floating scope and DMM channels supporting up to 600 VRMS, it’s ideal for complex, high-voltage environments.
Simultaneous operation of scope and meter modes allows independent analysis of different signals. Features include datalogging, waveform storage, 21 auto measurements, and RS-232 communications.
Testwall can supply the used Tektronix THS730A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix THS730A.
