Tektronix TIVP1
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Voltage Range | ±15 V (DC + Peak AC) |
| Input Impedance | 1 MΩ |
| Dynamic Range | ±10 V |
| Probe Type | IsoVu Isolated Voltage Probe |
| Isolation Voltage | Up to 1000 V RMS CAT III |
| Common Mode Rejection Ratio (CMRR) | Greater than 80 dB at 1 MHz |
| Power Supply | Powered via TekVPI probe interface |
| Connector Type | TekVPI Interface |
| Compatible Oscilloscopes | Tektronix MSO/DPO5000, MSO/DPO7000, DPO70000 Series |
Tektronix TIVP1 Options:
- TIVP1 - C3 - Calibration Service 3 Years
- TIVP1 - C5 - Calibration Service 5 Years
- TIVP1 - D1 - Calibration Data Report
- TIVP1 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TIVP1 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TIVP1 - R3 - Repair Service 3 Years (including warranty)
- TIVP1 - R5 - Repair Service 5 Years (including warranty)
| Model | TIVP1 |
|---|

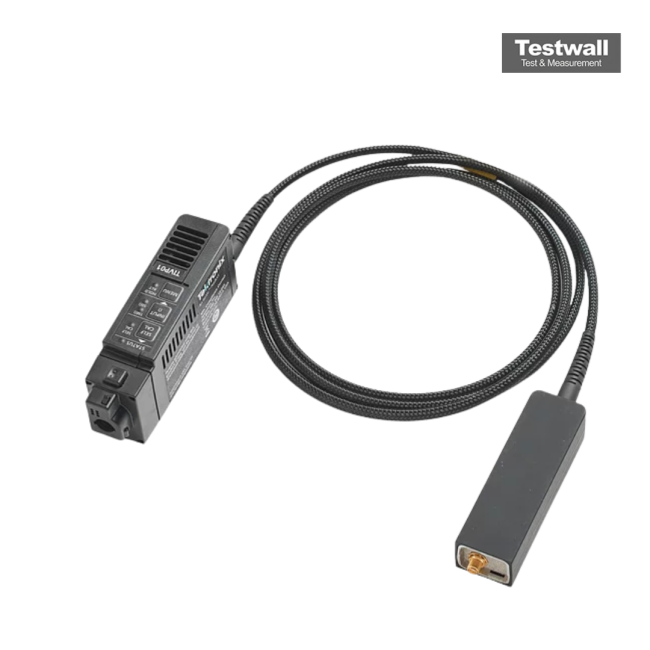

TEKTRONIX TIVP1 Galvanically Isolated High Impedance Differential Probe
The Tektronix TIVP1 Galvanically Isolated High Impedance Differential Probe equipped with IsoVu technology delivers accurate differential measurements up to ±50 V on reference voltages slewing ±60 kV at 100 V/ns or faster. With the Tektronix TIVP1 versatile MMCX connectors and an unmatched combination of bandwidth, dynamic range, and common mode rejection, IsoVu Gen 2 probes are setting new standards for isolated probe technology and enabling wide bandgap power designs using SiC and GaN.
With the Tektronix TIVP1 Galvanically Isolated High Impedance Differential Probe the IsoVu technology has unmatched common mode rejection at full bandwidth that lets you see signal details, often for the first time. This is usefull when noise from the rapidly changing common mode voltage leaks into the differential measurements and hides details on VGS and VDS, also when wide bandgap devices like SiC and GaN FETs are hard to measure because they can switch high voltages in a few nanoseconds.
Specifications for the TEKTRONIX TIVP1 Galvanically Isolated High Impedance Differential Probe Include:
| Bandwidth | 1 GHz |
| Rise Time | 450 ps |
| Common Mode Voltage Range | 60 kV peak |
| Input Capacitance | < 2 pF |
