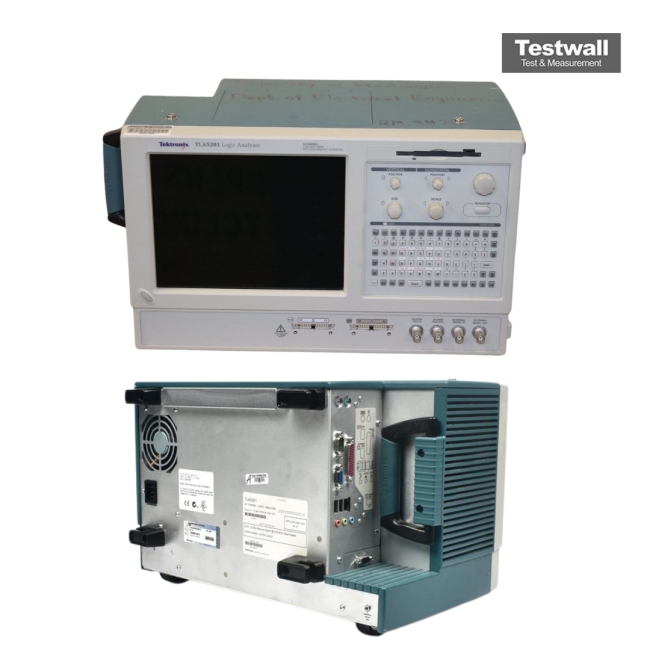

Tektronix TLA5201
| Attribute | Value |
|---|---|
| Number of Channels | 136 channels |
| Maximum State Clock Speed | 235 MHz |
| Maximum Timing Speed | 500 MHz |
| Memory Depth | 64 Kb per channel |
| Threshold Accuracy | ±50 mV |
| Threshold Range | -6 V to +6 V |
| Minimum Detectable Pulse Width | 2 ns |
| Input Impedance | 100 kΩ, 8 pF |
| Operating System | Windows XP |
| Form Factor | Portable/Benchtop Logic Analyzer Mainframe |
Tektronix TLA5201 Options:
- TLA5201 - Opt. 1C - Add iView™ external oscilloscope cable kit (012-1614-xx)
- TLA5201 - Opt. 7S - Increase to 2 Mb base record length per channel
- TLA5201 - Opt. 8S - Increase to 8 Mb base record length per channel
- TLA5201 - Opt. C3 - Calibration Service 3 Years
- TLA5201 - Opt. C5 - Calibration Service 5 Years
- TLA5201 - Opt. D1 - Calibration Data Report
- TLA5201 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- TLA5201 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- TLA5201 - Opt. R3 - Repair Service 3 Years
- TLA5201 - Opt. R5 - Repair Service 5 Years
- TLA5201 - Opt. A0 - North America power cord (161-0104-00)
- TLA5201 - Opt. A1 - Universal EURO power cord (161-0104-06)
- TLA5201 - Opt. A2 - United Kingdom power cord (161-0104-07)
- TLA5201 - Opt. A3 - Australia power cord (161-0104-14)
- TLA5201 - Opt. A4 - 240 V, North America power cord (161-0104-08)
- TLA5201 - Opt. A5 - Switzerland power cord (161-0167-00)
- TLA5201 - Opt. A6 - Japan power cord (161-A005-00)
- TLA5201 - Opt. A10 - China power cord (161-0306-00)
- TLA5201 - Opt. A99 - No power cord or AC adapter
- TLA5201 - Opt. L0 - English Manuals
- TLA5201 - Opt. L5 - Japanese Manuals
- TLA5201 - Opt. L10 - Russian Manuals
- TLA5201 - Opt. L99 - No Manuals
| Model | TLA5201 |
|---|
The Tektronix TLA5201 is a high-performance logic analyzer offering 500 ps (2 GHz) timing with 32 Mb deep memory, enabling extended event capture over broad time windows. It integrates 125 ps-resolution MagniVu™ timing for simultaneous state or memory acquisition, and 235 MHz state acquisition for efficient debugging of high-speed digital circuits. Glitch and setup/hold violation triggers help expose elusive errors. iView™ technology offers synchronized digital-analog views for signal correlation. Available in 34/68/102/136 channel configurations.
Ideal for advanced diagnostics, the TLA5201 allows precision capture and analysis of timing anomalies, ensuring effective debugging across complex system environments.
Testwall can supply the used Tektronix TLA5201, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA5201.
