Tektronix TLA5203B
| Attribute | Value |
|---|---|
| Number of Channels | 136 channels |
| Maximum Sample Rate | 2 GHz (500 ps timing resolution) |
| Memory Depth | Up to 128 Mb per channel |
| Threshold Voltage Range | -2.0 V to +4.0 V, adjustable in 10 mV increments |
| Input Voltage Range | -2.0 V to +7.0 V (maximum input without damage) |
| Minimum Detectable Pulse Width | 500 ps |
| Form Factor | Portable mainframe (benchtop) |
| Number of Module Slots | 3 logic analyzer module slots |
| Operating System | Windows XP Embedded |
| Trigger System | Advanced pattern, range, and event triggering with up to 16 levels of trigger sequencing |
| Model | TLA5203B |
|---|

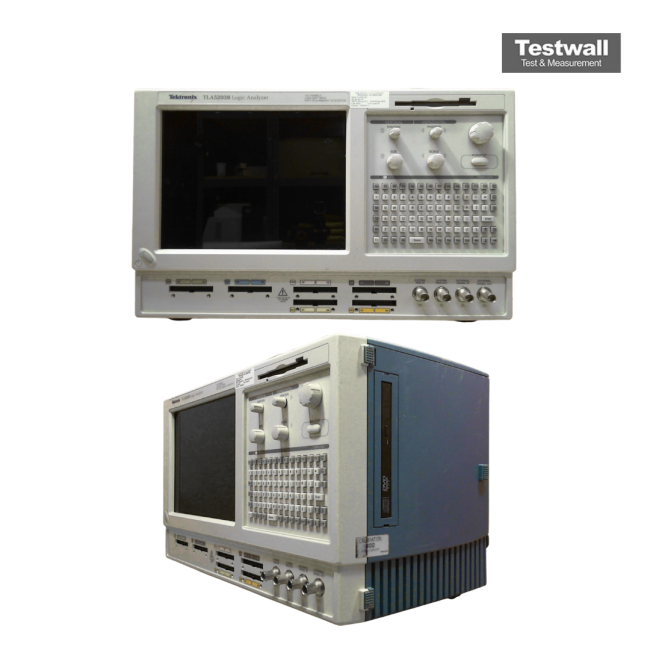

The Tektronix TLA5203B Logic Analyzer features 500 ps timing resolution and 32 Mb record length, integrated with 125 ps MagniVu™ acquisition for precision diagnostics. It supports 235 MHz state acquisition and offers glitch and setup/hold violation triggering. With 34 to 136 channel configurations and a Windows XP interface, it ensures seamless digital analysis.
Ideal for capturing intermittent digital errors and validating signal integrity, the TLA5203B fits both novice and expert debugging environments with OpenChoice networking and intuitive operation.
Testwall can supply the used Tektronix TLA5203B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA5203B
