Tektronix TLA613
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Sample Rate | 400 MHz |
| Maximum State Clock Rate | 200 MHz |
| Memory Depth | Up to 128 Mb per channel |
| Threshold Voltage Range | -2.0 V to +4.0 V |
| Input Voltage Range | -2.0 V to +7.0 V |
| Minimum Detectable Pulse Width | 2.5 ns |
| Form Factor | TLA700 Series Mainframe Module |
| Number of Probe Connectors | 4 Connectors (34 channels each) |
| Compatible Mainframe | TLA714, TLA715, TLA720, TLA721 |
Tektronix TLA613 Options:
- TLA613 - 1P - Add P6418 17 channel general-purpose probes (each includes two 8 channel leadsets, one 1 channel leadset, 20 SMT KlipChip grabber tips)
- TLA613 - 2P - Add P6434 34 channel high-density probe(s)
- TLA613 - 3P - Add P6417 17 channel general-purpose probes (each includes two 8 channel leadsets, one 1 channel leadset, 20 SMT KlipChip grabber tips)
- TLA613 - 1S - Increase to 256 K depth @ 100 MHz state
- TLA613 - 4S - Increase to 64 K depth @ 200 MHz state
- TLA613 - 5S - Increase to 256 K depth @ 200 MHz state
- TLA613 - 1J - 128 MB DRAM/30 GB hard disk
- TLA613 - 1K - Add LACART logic analyzer cart
- TLA613 - 1M - Add 17 in. monitor (119-5700-00)
- TLA613 - 2M - Add 21 in. monitor (119-5798-00)
- TLA613 - A1 - Universal Euro 220 VAC; 50 Hz
- TLA613 - A2 - UK 240 VAC; 50 Hz
- TLA613 - A3 - Australian 240 VAC; 50 Hz
- TLA613 - A4 - North American 240 VAC; 60 Hz
- TLA613 - A5 - Switzerland 220 VAC; 50 Hz
- TLA613 - A99 - No Power Cord
- TLA613 - IN - Product installation service (on-site configuration and user familiarization; excluding network integration)
- TLA613 - R3 - Extends depot repair warranty service period to three years
- TLA613 - S1 - Uplifts standard one-year warranty service of mainframe and installed modules to on-site service
- TLA613 - S3 - Uplifts Opt. C3 and/or R3 of mainframe and installed modules to on-site service (must be ordered with Opt. C3 and/or R3)
- TLA613 - C3 - Three years of Calibration Service (includes initial calibration and two annual calibrations)
- TLA613 - D1 - Add calibration test data report
- TLA613 - D3 - Provides test data for each calibration (must be ordered with Opt. C3)
| Model | TLA613 |
|---|

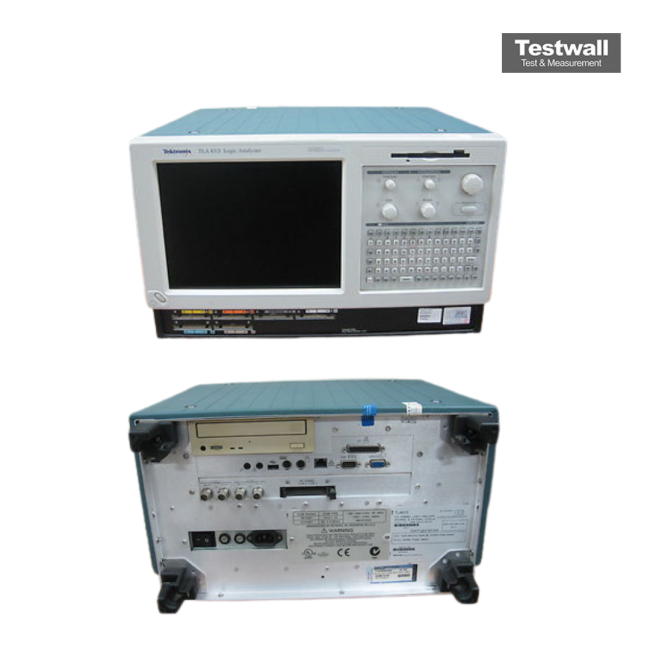

The Tektronix TLA613 Logic Analyzer offers 102 channels with 2 GHz timing resolution via MagniVu technology, enabling precise glitch and setup/hold triggering. It features up to 200 MHz state acquisition, 500 MHz timing analysis with 2 Mb depth per channel, and allows simultaneous state/timing analysis from a single probe for accurate fault detection.
Designed for digital circuit developers, it integrates iView capability for cross-domain analysis, supports universal source code correlation, and includes transitional storage for extended capture. Ideal for general-purpose state/timing analysis in embedded systems.
Testwall can supply the used Tektronix TLA613, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA613.
