Tektronix
Tektronix TLA711
136 Channels Number of Channels
450 MHz Maximum Clock Speed
900 Mb/s Maximum Sample Rate
128 Kb per channel Memory Depth
-2.0 V to +4.0 V Threshold Range
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Clock Speed | 450 MHz |
| Maximum Sample Rate | 900 Mb/s |
| Memory Depth | 128 Kb per channel |
| Threshold Range | -2.0 V to +4.0 V |
| Minimum Detectable Pulse Width | 1.1 ns |
| Input Impedance | 100 kΩ, 8 pF |
| Form Factor | Single-wide TLA 700 Series Module |
| Operating Temperature | 0°C to +50°C |
| Compatibility | TLA 700 Series Mainframe |
| Model | TLA711 |
|---|

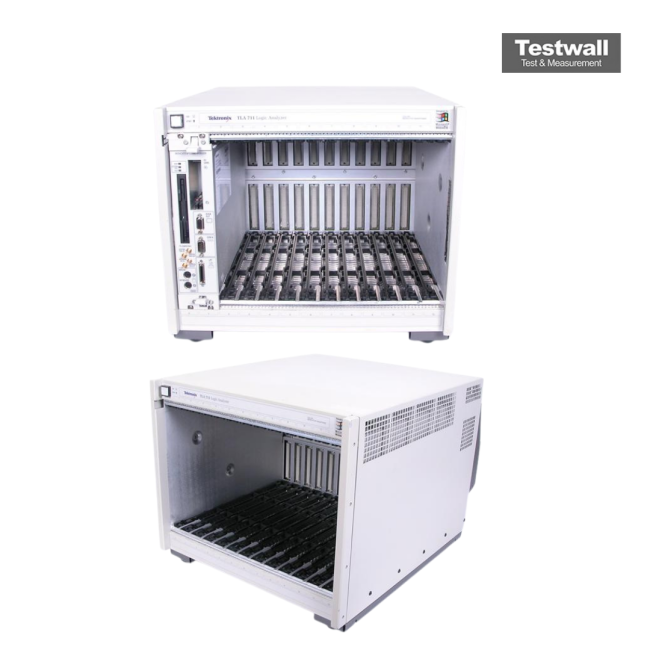

The Tektronix TLA 711 is a modular VME-style mainframe equipped with a Pentium 133 MHz processor, 128 MB DRAM, and 6.02 GB HDD. It includes the TLA 7L2 68-Channel Logic Analyzer and the TLA 7D1 500MHz 2.5GS/s Dual Channel DSO, supporting detailed signal analysis.
This system comes preloaded with Windows 98 SE, Tek TLA 700 Application v3.2, Pattern Generator v1.0, and QA+Win32 v2.0, offering integrated logic analysis and waveform capture capabilities.
Testwall can supply the used Tektronix TLA 711, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA 711.
