Tektronix TLA7L3
136 Channels Number of Channels
300 MHz Maximum State Speed
600 MHz Maximum Timing Speed
128 Kbits per channel Memory Depth
-2.0 V to +4.0 V, programmable in 50 mV steps Threshold Voltage Range
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum State Speed | 300 MHz |
| Maximum Timing Speed | 600 MHz |
| Memory Depth | 128 Kbits per channel |
| Threshold Voltage Range | -2.0 V to +4.0 V, programmable in 50 mV steps |
| Input Voltage Range | -2.0 V to +6.0 V |
| Module Type | Logic Analyzer Module |
| Compatible Platform | Tektronix TLA7000 Series Mainframe |
| Minimum Detectable Pulse Width | 1.67 ns |
| Setup/Hold Time | Adjustable window, minimum 0 ns setup and 0 ns hold |
| Model | TLA7L3 |
|---|

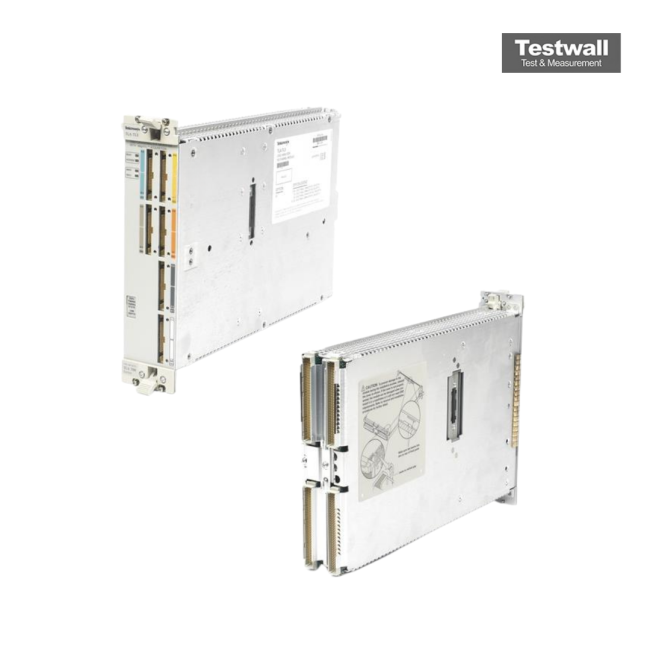

The Tektronix TLA7L3 is a 102-channel acquisition module for TLA7xx series, offering 100MHz state and 2GHz timing analysis. Option 1S enhances state speed to 200MHz, and Option 2S expands memory to 128KB per channel—both retrofittable. It comes with six P6417 probes.
Ideal for high-speed digital designs, it supports P64xx probes and allows merging multiple modules for extensive logic analysis.
Testwall can supply the used Tektronix TLA7L3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7L3.
