Tektronix TLA7L4
136 Ch 2GHz Logic Analyser
136 Channels Number of Channels
235 MHz Maximum State Clock Rate
500 MHz Maximum Timing Rate
64 Kb per channel (expandable to 256 Kb) Memory Depth per Channel
±50 mV Threshold Accuracy
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum State Clock Rate | 235 MHz |
| Maximum Timing Rate | 500 MHz |
| Memory Depth per Channel | 64 Kb per channel (expandable to 256 Kb) |
| Threshold Accuracy | ±50 mV |
| Threshold Range | -5.0 V to +5.0 V |
| Input Voltage Range | -5.0 V to +5.0 V |
| Minimum Input Signal Swing | 500 mV |
| Module Compatibility | Tektronix TLA7000 Series Mainframe |
| Probe Interface | Two 68-channel probe connectors (P6434 compatible) |
Tektronix TLA7L4 Options:
- TLA7L4 - 1P - Add P6418 17 channel general-purpose probes (each includes two 8 channel leadsets, one 1 channel leadset, 20 SMT KlipChip™ grabber tips)
- TLA7L4 - 2P - Add P6434 34 channel high-density probe(s)
- TLA7L4 - 3P - Add P6417 17 channel general-purpose probes (each includes two 8 channel leadsets, one 1 channel leadset, 20 SMT KlipChip™ grabber tips)
- TLA7L4 - 1S - Increase to 256 K depth @ 100 MHz state
- TLA7L4 - 2S - Increase to 1 M depth @ 100 MHz state
- TLA7L4 - 3S - Increase to 4 M depth @ 100 MHz state
- TLA7L4 - 4S - Increase to 64 K depth @ 200 MHz state
- TLA7L4 - 5S - Increase to 256 K depth @ 200 MHz state
- TLA7L4 - 6S - Increase to 1 M depth @ 200 MHz state
- TLA7L4 - 7S - Increase to 4 M depth @ 200 MHz state
- TLA7L4 - A1 - Universal Euro 220 VAC; 50 Hz
- TLA7L4 - A2 - UK 240 VAC; 50 Hz
- TLA7L4 - A3 - Australian 240 VAC; 50 Hz
- TLA7L4 - A4 - North American 240 VAC; 60 Hz
- TLA7L4 - A5 - Switzerland 220 VAC; 50 Hz
- TLA7L4 - A99 - No Power Cord
- TLA7L4 - IN - Product installation service (on-site configuration and user familiarization; excluding network integration)
- TLA7L4 - R3 - Extends depot repair warranty service period to three years
- TLA7L4 - S1 - Uplifts standard one-year warranty service of mainframe and installed modules to on-site service
- TLA7L4 - S3 - Uplifts Opt. C3 and/or R3 of mainframe and installed modules to on-site service (must be ordered with Opt. C3 and/or R3)
- TLA7L4 - C3 - Three years of Calibration Service (includes initial calibration and two annual calibrations)
- TLA7L4 - D1 - Add calibration test data report
- TLA7L4 - D3 - Provides test data for each calibration (must be ordered with Opt. C3)
| Model | TLA7L4 |
|---|

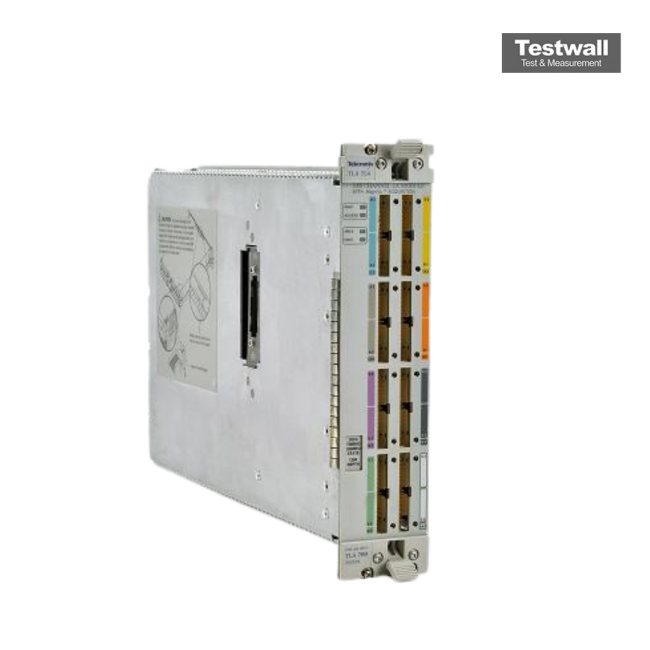

The Tektronix TLA7L4 is a high-performance 136-channel logic analyzer module offering 2 GHz timing, 100 MHz state analysis, and a 32K memory depth for each channel. It is engineered for use with TLA 700 Series mainframes.
Ideal for high-speed digital test and measurement tasks, the TLA7L4 ensures precise timing and state data acquisition across multiple channels in demanding applications.
Testwall can supply the used Tektronix TLA7L4, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7L4.
