Tektronix TLA7N4
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Timing Resolution | 500 ps |
| Maximum State Clock Rate | 235 MHz |
| Memory Depth per Channel | 16 Mb (Megabits) per channel |
| Threshold Voltage Range | -2.0 V to +4.0 V, adjustable in 10 mV increments |
| Input Voltage Range | -2.0 V to +4.0 V |
| Minimum Detectable Pulse Width | 1.5 ns |
| Module Form Factor | TLA7000 Series Mainframe Compatible Module |
| Number of Probe Connectors | 4 Connectors (34 channels each) |
| Operating Temperature | 0°C to +50°C |
Tektronix TLA7N4 Options:
- TLA7N4 - 1P - Add P6418 17 channel general-purpose probes (each includes two 8 channel leadsets, one 1 channel leadset, 20 SMT KlipChip™ grabber tips)
- TLA7N4 - 2P - Add P6434 34 channel high-density probe(s)
- TLA7N4 - 3P - Add P6417 17 channel general-purpose probes (each includes two 8 channel leadsets, one 1 channel leadset, 20 SMT KlipChip grabber tips)
- TLA7N4 - 1S - Increase to 256 K depth @ 100 MHz state
- TLA7N4 - 2S - Increase to 1 M depth @ 100 MHz state
- TLA7N4 - 3S - Increase to 4 M depth @ 100 MHz state
- TLA7N4 - 4S - Increase to 64 K depth @ 200 MHz state
- TLA7N4 - 5S - Increase to 256 K depth @ 200 MHz state
- TLA7N4 - 6S - Increase to 1 M depth @ 200 MHz state
- TLA7N4 - 7S - Increase to 4 M depth @ 200 MHz state
- TLA7N4 - A1 - Universal Euro 220 VAC; 50 Hz
- TLA7N4 - A2 - UK 240 VAC; 50 Hz
- TLA7N4 - A3 - Australian 240 VAC; 50 Hz
- TLA7N4 - A4 - North American 240 VAC; 60 Hz
- TLA7N4 - A5 - Switzerland 220 VAC; 50 Hz
- TLA7N4 - A99 - No Power Cord
- TLA7N4 - IN - Product installation service (on-site configuration and user familiarization; excluding network integration)
- TLA7N4 - R3 - Extends depot repair warranty service period to three years
- TLA7N4 - S1 - Uplifts standard one-year warranty service of mainframe and installed modules to on-site service
- TLA7N4 - S3 - Uplifts Opt. C3 and/or R3 of mainframe and installed modules to on-site service (must be ordered with Opt. C3 and/or R3)
- TLA7N4 - C3 - Three years of Calibration Service (includes initial calibration and two annual calibrations)
- TLA7N4 - D1 - Add calibration test data report
- TLA7N4 - D3 - Provides test data for each calibration (must be ordered with Opt. C3)
| Model | TLA7N4 |
|---|

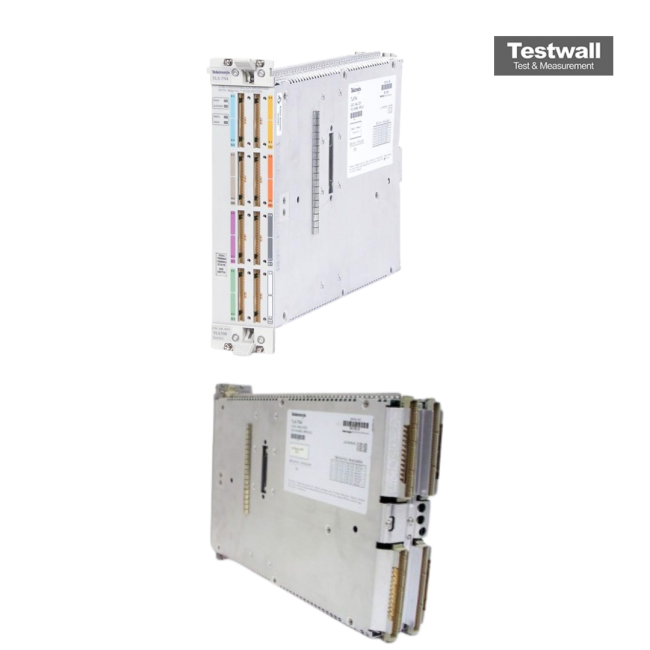

The Tektronix TLA7N4 is a 136-channel logic analyzer module equipped with MagniVu™ technology, enabling 2 GHz (500 ps) timing resolution. It supports up to 200 MHz state acquisition and simultaneous state and timing analysis using a single probe. With up to 8 Mb per channel deep timing, it excels at capturing elusive faults and analyzing complex digital systems.
Designed for digital hardware engineers, integrators, and embedded software developers, the TLA7N4 allows real-time tracing of software execution, hardware/software fault correlation, and comprehensive bus/protocol analysis using nonintrusive probes.
Testwall can supply the used Tektronix TLA7N4, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7N4.
