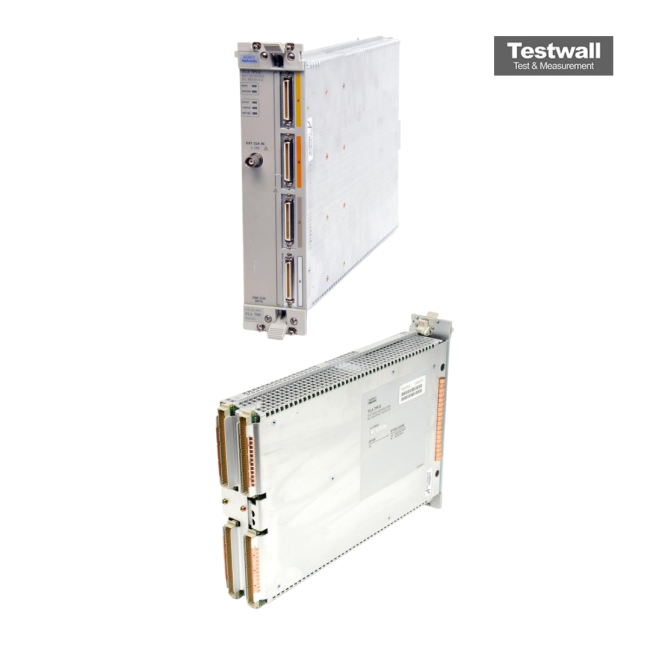

Tektronix TLA7PG2
| Attribute | Value |
|---|---|
| Number of Channels | 136 Data Channels |
| Maximum Clock Rate | 200 MHz |
| Pattern Depth | 32K Vectors per Channel |
| Output Voltage High (VOH) | -2.0 V to +7.0 V |
| Output Voltage Low (VOL) | -2.0 V to +7.0 V |
| Output Drive Current | ±24 mA |
| Timing Resolution | 5 ns |
| Compatible Platform | Tektronix TLA7000 Series Logic Analyzer Mainframe |
| Module Form Factor | Single-Wide TLA7000 Series Module |
| Supported Logic Families | TTL, CMOS, ECL, LVDS, and Other Standard Logic Families |
Tektronix TLA7PG2 Options:
- TLA7PG2 - Opt. 1M - Increase to 1 Mb depth
- TLA7PG2 - Opt. R3 - Repair Service 3 Years
- TLA7PG2 - Opt. R5 - Repair Service 5 Years
| Model | TLA7PG2 |
|---|
The Tektronix TLA7PG2 is a high-throughput 64-channel pattern generator module engineered for real-time digital systems analysis, enabling clock rates up to 268 MHz. It supports a wide range of logic standards—TTL/CMOS, ECL, PECL/LVPECL, LVDS, LVCMOS—via external probes, making it adaptable to various voltage-level requirements. The module interfaces seamlessly with the TLA700 Series logic analyzers and generates vector stimuli for software tools like SynaptiCAD WaveFormer Pro, VeriLogger Pro, and TestBencher Pro.
Designed to replicate rare test conditions, the TLA7PG2 drives or single-steps prototypes in full-speed or controlled environments, ideal for functional verification, stress testing, and debugging without full system setups. Its 2 Mb vector depth and pattern sequencing allow precise definition of complex event sequences.
Testwall supplies the used Tektronix TLA7PG2, fully tested, with comprehensive expert support and efficient global shipping. Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7PG2.
