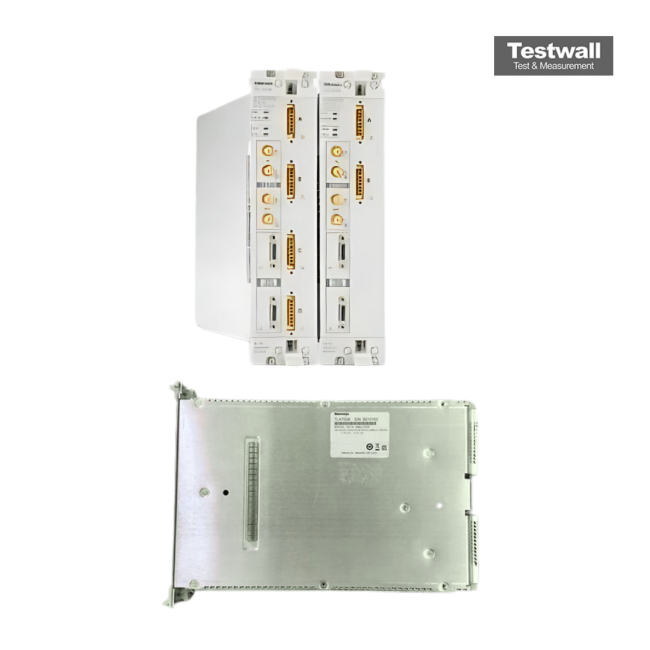

Tektronix TLA7S08
| Attribute | Value |
|---|---|
| Number of Channels | 8 |
| Maximum Sample Rate | 4 Gb/s Timing, 800 Mb/s State |
| Memory Depth | 128 Mb per channel |
| Threshold Range | -2.0 V to +4.0 V |
| Minimum Detectable Pulse Width | 250 ps |
| Input Impedance | 100 kΩ, 8 pF |
| Maximum Input Voltage | ±15 V (DC + peak AC) |
| Form Factor | TLA7000 Series Mainframe Module |
| Clocking | Internal and External Clock Support |
| Compatibility | Tektronix TLA7000 Series Logic Analyzer Mainframe |
| Model | TLA7S08 |
|---|
The Tektronix TLA7S08 Serial Analyzer Module supports PCI Express Gen1 and Gen2 with x1/x4 bidirectional and x8 unidirectional links. It offers 8-channel acquisition with 32M 8b/10b symbol memory depth per channel, supporting data rates of 2.5 Gb/s and 5.0 Gb/s. The unit features powerful protocol-level triggering, frequency margining, and dynamic link tracking, ensuring precise monitoring of PCIe systems.
Ideal for integration into Tektronix portable or benchtop logic analyzers, the TLA7S08 uses specialized probes to non-intrusively analyze PCIe signals in circuit boards or PCIe devices, delivering real-time link status and error decoding.
Testwall can supply the used Tektronix TLA7S08, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7S08.
