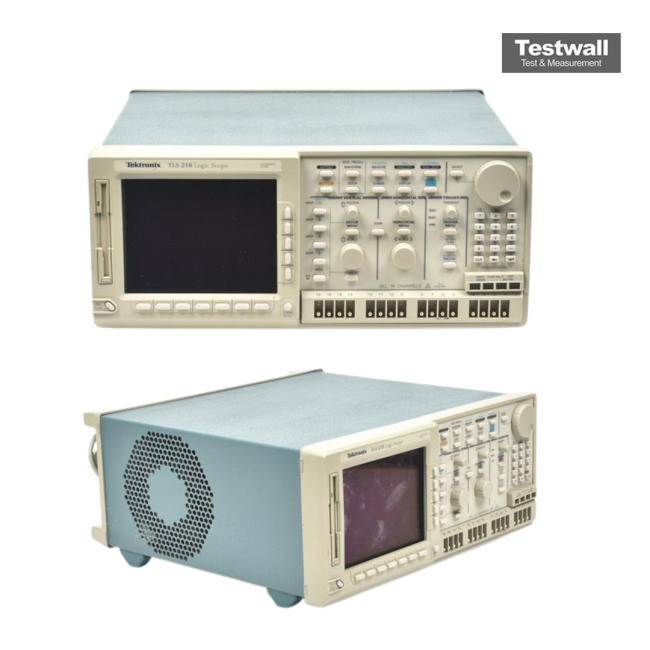

Tektronix TLS216
| Attribute | Value |
|---|---|
| Number of Channels | 16 Logic + 2 Analog |
| Maximum Sample Rate | 500 MS/s |
| Record Length | Up to 120,000 samples per channel |
| Analog Bandwidth | 100 MHz |
| Logic Threshold Range | -6.0 V to +6.0 V, adjustable in 10 mV increments |
| Minimum Detectable Pulse Width | 2 ns |
| Time Base Range | 5 ns/div to 40 s/div |
| Display | Color LCD, 640 x 480 resolution |
| Input Impedance (Analog Channels) | 1 MΩ in parallel with 20 pF |
| Interface / Connectivity | RS-232, Parallel (Centronics), GPIB (IEEE-488) |
| Model | TLS216 |
|---|
The Tektronix TLS216 Logic Scope integrates a 500 MHz bandwidth analog system with 2 GS/s sampling across 16 channels, offering precise digital analysis. With advanced time-qualified triggering, glitch and pulse detection, it identifies complex digital faults effortlessly. It features a color display, floppy drive, and multiple interface ports.
Designed with low-mass 2.5 pF FET probes and versatile triggering options, the TLS216 ensures accurate, nonintrusive measurement across TTL, ECL, and CMOS logic families.
Testwall can supply the used Tektronix TLS216, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLS216.
