Tektronix
Tektronix TM5003
3 Slot Programmable Power Frame
3 Number of Plug-In Slots
150 W total available to plug-ins Power Output
90–250 V AC Input Voltage
48–66 Hz Input Frequency
250 W maximum Power Consumption
| Attribute | Value |
|---|---|
| Number of Plug-In Slots | 3 |
| Power Output | 150 W total available to plug-ins |
| Input Voltage | 90–250 V AC |
| Input Frequency | 48–66 Hz |
| Power Consumption | 250 W maximum |
| Compatible Plug-In Modules | TM500 and TM5000 series plug-in modules |
| Form Factor | Benchtop mainframe |
| Cooling | Forced air cooling with internal fan |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +75°C |
Tektronix TM5003 Options:
- TM5003 - 02 - Rear Interface
| Model | TM5003 |
|---|

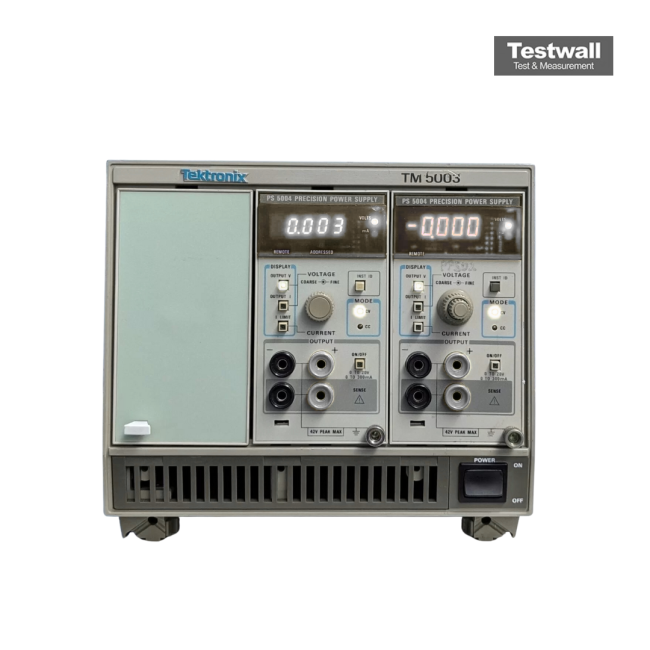

The Tektronix TM5003 is a benchtop power module mainframe supporting up to three TM500 or TM5000 series modules. It includes a GPIB (IEEE-488) interface, unregulated DC/AC supplies, and a quiet forced-air cooling system.
Ideal for combining manual and programmable instruments, it suits both portable and fixed testing setups with its tilt-balls, handles, and universal AC voltage compatibility.
Testwall can supply the used Tektronix TM5003, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TM5003.
