Tektronix TM504
| Attribute | Value |
|---|---|
| Number of Plug-In Slots | 4 |
| Power Supply Output | Provides regulated power to all four plug-in modules simultaneously |
| AC Input Voltage | 115V / 230V AC (selectable) |
| AC Input Frequency | 48 Hz to 440 Hz |
| Power Consumption | 150W maximum |
| Compatible Plug-In Modules | Compatible with standard Tektronix TM500 series plug-in instruments |
| Dimensions (H x W x D) | 133 mm x 213 mm x 381 mm (5.25 in x 8.38 in x 15 in) |
| Weight | Approximately 4.5 kg (10 lbs) without plug-ins |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Rack Mountable | Yes, compatible with standard 19-inch rack mounting |
Tektronix TM504 Options:
- TM504 - 02 - Rear Interface
| Model | TM504 |
|---|

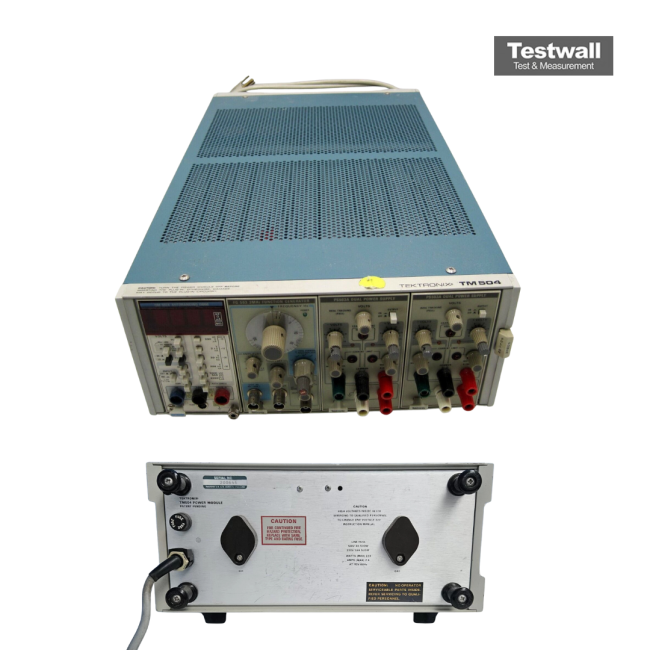

The Tektronix TM504 is a versatile Power Module Mainframe designed to house up to four single-width TM500 series plug-ins. It features four compartments, including a high-power right-hand compartment, and offers easy integration with a front panel switch, tilt bail, and handle. Plug-ins are sold separately for customized applications.
This unit is compatible with TM500 series plug-ins, making it ideal for a range of testing and measurement environments where modular design and flexibility are key.
Testwall can supply the used Tektronix TM504, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TM504.
