Tektronix TOP300
| Attribute | Value |
|---|---|
| Supported Device Types | Microcontrollers, Flash memories, EEPROMs, PLDs, CPLDs, and logic devices |
| Number of Supported Devices | Over 15,000 programmable devices |
| Programming Socket | Universal pin-driver architecture with 48 active pin drivers |
| Pin Driver Voltage Range | 1.5V to 6.5V per pin, individually settable |
| Interface | USB 2.0 high-speed interface for host computer connectivity |
| Operating Voltage | Vcc range: 1.5V to 6.5V, programmable in 0.1V increments |
| Programming Speed | High-speed concurrent programming with optimized algorithms per device |
| Software Compatibility | Compatible with Tektronix TekVision software; supports Windows operating systems |
| Package Support | Supports DIP, PLCC, SOIC, TSOP, TQFP, and other package types via interchangeable sockets |
| Power Supply | Powered via USB connection; no external power supply required for standard operation |
| Model | TOP300 |
|---|

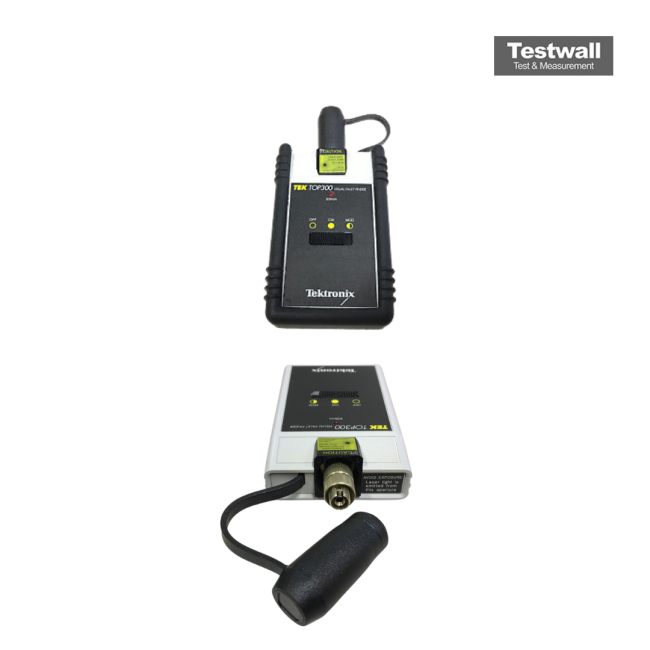

The Tektronix TOP300 is a handheld visual fault locator using a ~635 nm red laser diode to identify fiber breaks with millimeter-level precision. Designed for field use, it features CW and modulated output modes, and a universal connector interface supporting FC, SC, and ST types. Long battery life ensures reliable performance in remote locations.
Ideal for fiber installation, maintenance, and troubleshooting, it can also replace HeNe lasers in test benches. Its blinking mode improves break tracing visibility.
Testwall can supply the used Tektronix TOP300, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TOP300.
