Tektronix TRCP0600
| Attribute | Value |
|---|---|
| Current Range | Up to 600 A AC/DC |
| Bandwidth | DC to 100 MHz |
| Sensitivity | 10 mV/A |
| Maximum Peak Current | 900 A (non-repetitive) |
| Conductor Size (Maximum) | 20 mm diameter |
| Output Connector | BNC |
| Power Requirements | Powered via BNC connection from compatible oscilloscope |
| Compatible Instruments | Tektronix oscilloscopes with TekVPI or BNC interface |
| Operating Temperature | 0°C to 50°C |
| Safety Rating | CAT III 600 V, CAT II 1000 V |
Tektronix TRCP0600 Options:
- TRCP0600 - C3 - Calibration Service 3 Years
- TRCP0600 - C5 - Calibration Service 5 Years
- TRCP0600 - D1 - Calibration Data Report
- TRCP0600 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TRCP0600 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TRCP0600 - R3 - Repair Service 3 Years (including warranty)
- TRCP0600 - R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- TRCP0600 - R5 - Repair Service 5 Years (including warranty)
- TRCP0600 - R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | TRCP0600 |
|---|

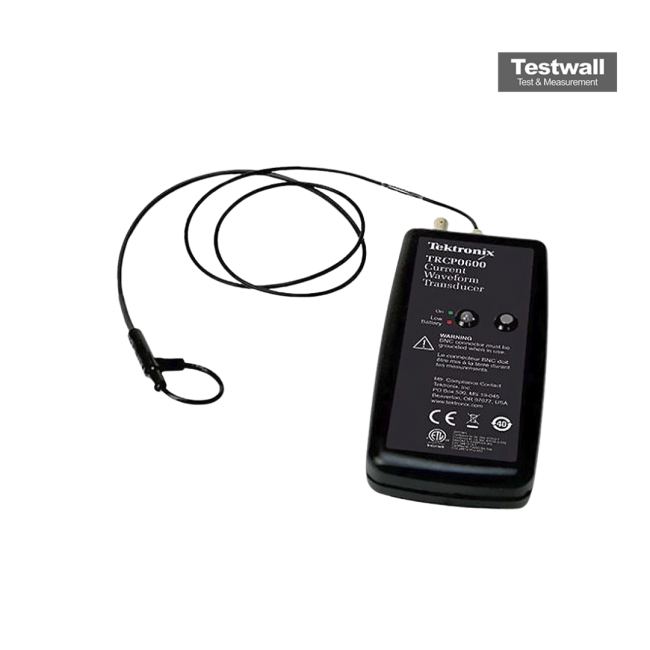

The Tektronix TRCP0600 Rogowski current probe features a BNC connector and is compatible with any device supporting BNC inputs. It offers 2 mV/A sensitivity, ±2% accuracy, and a 500X attenuation setting. Its flexible, 8.5 mm diameter coil ensures reliable current measurement for small components.
Ideal for AC-only measurements, the TRCP0600’s thin, flexible design allows it to easily wrap around transistors, bus bars, or IC legs like MOSFETs or IGBTs in compact environments.
Testwall can supply the used Tektronix TRCP0600, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TRCP0600.
