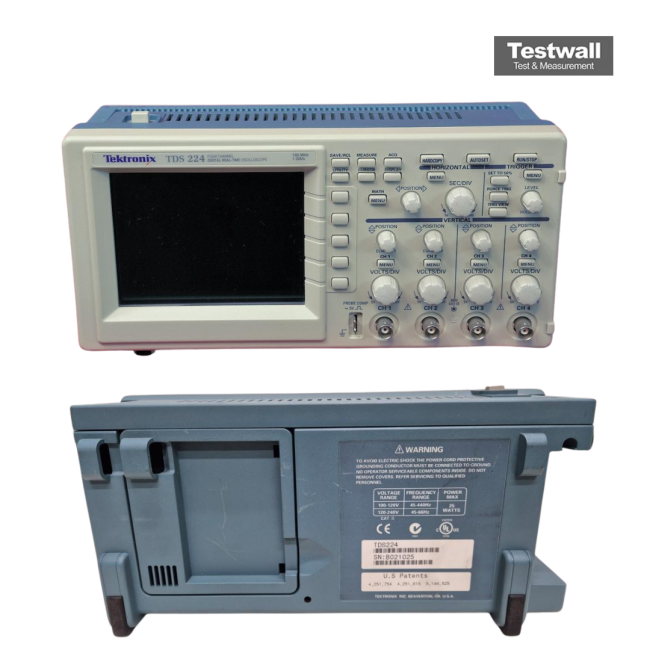

Tektronix TSDS224
100 MHz Digital Storage Oscilloscope
4 Number of Channels
200 MHz Bandwidth
1 GS/s Sample Rate
2500 points per channel Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 200 MHz |
| Sample Rate | 1 GS/s |
| Record Length | 2500 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display Type | Color LCD |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Connectivity | USB, RS-232 |
Tektronix TSDS224 Options:
- TSDS224 - A1 - Universal Euro 220 V, 50 Hz
- TSDS224 - A2 - United Kingdom 240 V, 50 Hz
- TSDS224 - A3 - Australia 240 V, 50 Hz
- TSDS224 - A4 - North America 240 V, 60 Hz
- TSDS224 - A5 - Switzerland 220 V, 50 Hz
- TSDS224 - AC - China 240 V, 50 Hz
- TSDS224 - L1 - French User Manual
- TSDS224 - L2 - Italian User Manual
- TSDS224 - L3 - German User Manual
- TSDS224 - L4 - Spanish User Manual
- TSDS224 - L5 - Japanese User Manual
- TSDS224 - L6 - Portuguese User Manual
- TSDS224 - L7 - Simplified Chinese User Manual
- TSDS224 - L8 - Traditional Chinese User Manual
- TSDS224 - L9 - Korean User Manual
- TSDS224 - LR - Russian User Manual
| Model | TSDS224 |
|---|
The Tektronix TDS224 is a 100 MHz, 4-channel digital oscilloscope offering 1 GS/s sampling on all channels, ideal for analyzing voltage and current signals over time. It includes automatic measurements, dual timebase, Autoset, and supports waveform and setup memories.
This oscilloscope suits troubleshooting, production testing, and electronic design tasks. Optional modules, software, and probing expand its capabilities further.
Testwall can supply the used Tektronix TDS224, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS224.
