Tektronix TVS625
| Attribute | Value |
|---|---|
| Number of Channels | 8 Analog Channels |
| Bandwidth | 500 MHz |
| Sample Rate | 2.5 GS/s |
| Record Length | 50,000 Points per Channel |
| Vertical Resolution | 8-bit |
| Input Impedance | 1 MΩ or 50 Ω |
| Time Base Range | 200 ps/div to 40 s/div |
| Display Type | Color LCD Display |
| Trigger Types | Edge, Pulse Width, Logic, Setup/Hold, Video, Serial |
| Connectivity | GPIB, RS-232, Ethernet, USB |
| Model | TVS625 |
|---|

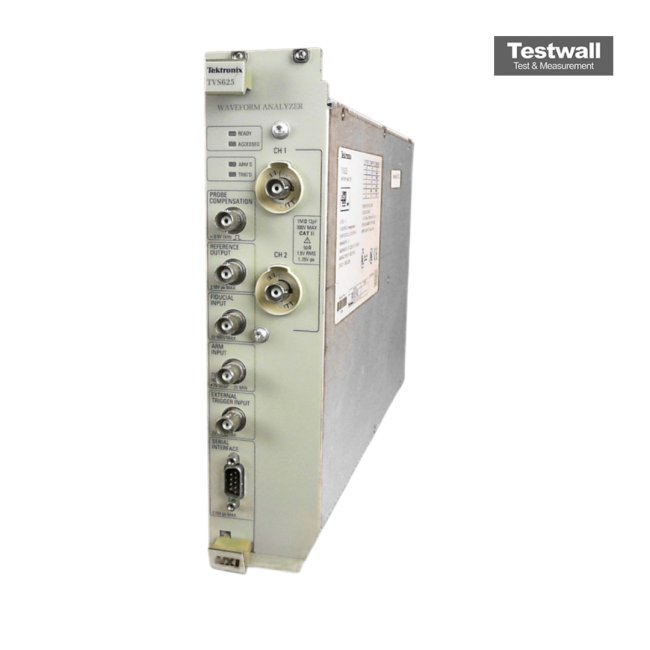

The Tektronix TVS625 is a high-performance VXI-based waveform analyzer offering up to 250 MHz bandwidth and 1 GS/s single-shot sampling. Enhanced configurations enable 1 GHz bandwidth and 5 GS/s acquisition on 2 or 4 channels, ideal for capturing high-speed analog and digital signals in automated test environments.
Engineered for precision and flexibility, it supports advanced edge and pulse-width triggering, multi-channel acquisition, and seamless VXI system integration with compact 2.5 kg design for easy deployment.
Testwall can supply the used Tektronix TVS625, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TVS625.
