Tektronix TVS645A
| Attribute | Value |
|---|---|
| Number of Channels | 8 Channels |
| Bandwidth | 200 MHz |
| Sample Rate | 2.5 GS/s |
| Record Length | 500,000 Points per Channel |
| Vertical Resolution | 8-bit |
| Input Impedance | 1 MΩ or 50 Ω |
| Display Type | Color LCD Display |
| Trigger Types | Edge, Glitch, Runt, Width, Slew Rate, Timeout, Pattern, State, Delay |
| Connectivity/Interface | GPIB, RS-232, Centronics |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Tektronix TVS645A Options:
- TVS645A - C3 - Three years of Calibration Services
- TVS645A - C5 - Five years of Calibration Services
- TVS645A - D3 - Test Data for Opt. C3
- TVS645A - D5 - Test Data for Opt. C5
- TVS645A - R5 - Repair warranty extended to cover five years
| Model | TVS645A |
|---|

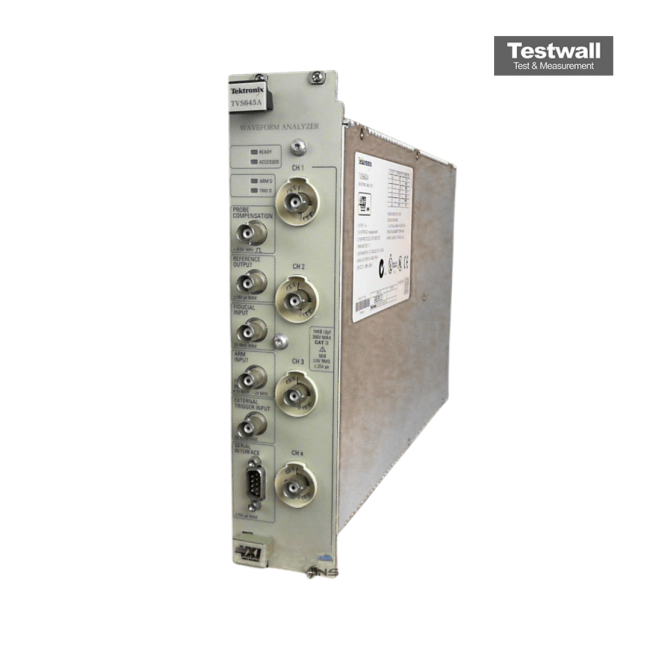

The Tektronix TVS645A is a high-speed VXI digitizer and waveform analyzer featuring 4 channels at 1 GHz bandwidth and 5 Gs/s sampling rate. It offers 8-bit vertical resolution, a record length of 15 K, and includes advanced features such as template and limit testing, flexible signal conditioning, sophisticated triggering, and extensive signal analysis.
Ideal for high-performance signal capture and analysis, the TVS645A is compatible with mainframes like VX1420A, VX1410A, and VX1411A. Other models in the series include TVS625A, TVS641A, and TVS621A.
Testwall can supply the used Tektronix TVS645A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TVS645A.
