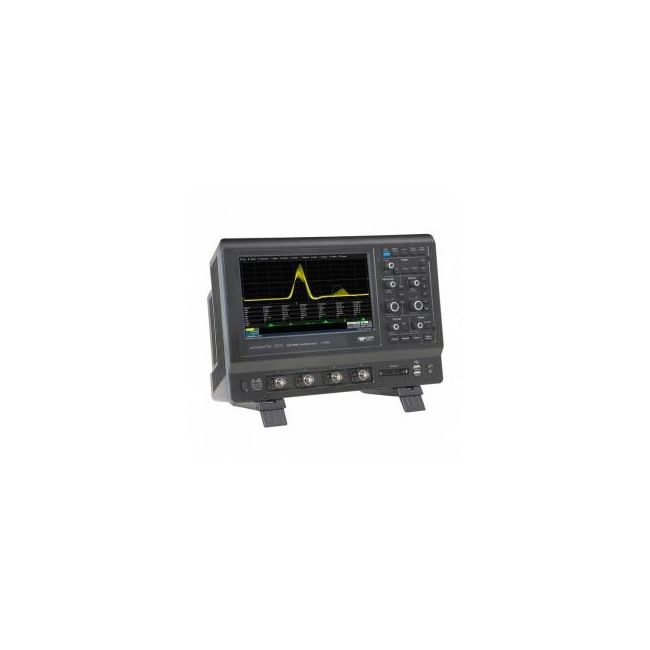

Teladyne LeCroy WAVESURFER 3034
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GS/s |
| Memory Depth | 10 Mpts/Ch |
| Display | 10.1-inch WXGA TFT LCD Touchscreen |
| Vertical Resolution | 8 bits |
| Input Impedance | 1 MΩ or 50 Ω |
| Waveform Capture Rate | 130,000 waveforms/second |
| Connectivity | USB Host, USB Device, Ethernet (LAN), HDMI |
| Time Base Range | 1 ns/div to 1000 s/div |
| Model | WAVESURFER 3034 |
|---|
The Teledyne LeCroy WaveSurfer 3034 offers a 350 MHz analog bandwidth across 4 channels, sampling at 2 GS/s (4 GS/s interleaved) with deep memory from 10–20 Mpts/channel. It features the intuitive 10.1″ touch-screen MAUI interface and advanced capabilities such as WaveScan, History Mode, LabNotebook, sequence mode, active probe support, and protocol decode options. Engineered for versatility, it delivers exceptional measurement accuracy with rapid signal acquisition.
Ideal for debugging, design validation, and protocol analysis, this oscilloscope provides high-speed data capture, advanced anomaly detection, and smooth multitouch navigation for efficient workflow.
Testwall can supply the used Teledyne LeCroy WaveSurfer 3034, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy WaveSurfer 3034.
