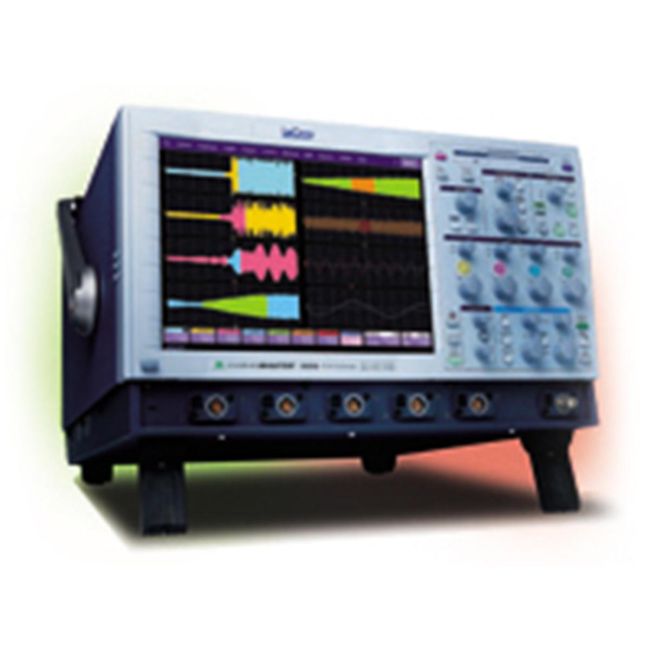

Teledyne LeCroy 8600A
4 Ch 6 GHz Digital Oscilloscope
6 GHz Bandwidth
20 GS/s Sample Rate
4 Number of Channels
32 Mpts/ch Memory Depth
8-bit (up to 11-bit with enhanced resolution) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Sample Rate | 20 GS/s |
| Number of Channels | 4 |
| Memory Depth | 32 Mpts/ch |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Input Impedance | 50 Ω |
| Vertical Sensitivity | 1 mV/div to 1 V/div |
| Timebase Range | 20 ps/div to 1000 s/div |
| Display | 12.1-inch color LCD touchscreen |
| Connectivity | USB, Ethernet (LAN), GPIB (optional) |
Teledyne LeCroy 8600A Options:
- 8600A - WM-M - Memory Option: 16M/8M (2 Ch/4 Ch)
- 8600A - WM-VL - Memory Option: 32M/16M (2 Ch/4 Ch)
- 8600A - WM-XL - Memory Option: 48M/24M (2 Ch/4 Ch)
- 8600A - XXL - Long Memory Model: 4 Ch; 6 GHz; 10 GS/s; 50 Mpts/Ch; 20 GS/s and 100 Mpts/Ch max. using 2 or 1 Ch
- 8600A - XMATH - Advanced Math Software Package
- 8600A - XDEV - Advanced Customization Software Package
- 8600A - XWEB - Processing Web Editor Software Package for Functions and Parameters
- 8600A - XMAP - Master Analysis Package (Includes JTA2, XMATH, XDEV)
- 8600A - DFP2 - Digital Filter Software Package
- 8600A - JTA2 - Jitter and Timing Analysis Software Package
- 8600A - LECROYM1/ADV-1 - Advanced M1 Software Package for Jitter and Timing Measurements (1 seat)
- 8600A - LECROYM1/ADV-4 - Advanced M1 Software Package for Jitter and Timing Measurements (4 seats)
- 8600A - LECROYM1/BASIC - Basic M1 Software Package for Jitter and Timing Measurements (1 seat)
- 8600A - SDM - Serial Data Mask Software Package
- 8600A - ENET - Ethernet Test Software Package
- 8600A - USB2 - USB 2.0 Compliance Test Software Package
- 8600A - SDA-SAS - SAS I/II Solution Analysis Software Package
- 8600A - SDA-HDMI - HDMI Compliance Test Software Package
- 8600A - PMA2 - PowerMeasure Analysis Software Package
- 8600A - WM-EMC - EMC Pulse Parameter Software Package
- 8600A - SDA-8B10B - 8B/10B Decoding and Analysis Software Package
- 8600A - AORM - Advanced Optical Recording Measurement Software Package
- 8600A - DDM2 - Disk Drive Measurement Software Package
- 8600A - MS-32-DSA - 32 Digital Channel Oscilloscope Mixed Signal Option
- 8600A - GPIB-1 - IEEE-488 GPIB Control Interface
- 8600A - DMD-1 - Dual Monitor Display
- 8600A - WM-GP02 - Internal Graphics Printer
- 8600A - WM-RHD - Removable Hard Drive Package (includes USB, CD-ROM, Removable Hard Drive, and Spare Hard Drive)
- 8600A - WM-RHD-02 - Additional Removable Hard Drive
- 8600A - WM-CDRW - CD-ROM Read/Write Upgrade
- 8600A - VT75 - Video Trigger Module
- 8600A - RMA-25 - Rackmount Adapter with 25" (64 cm) Slides
- 8600A - RMA-30 - Rackmount Adapter with 30" (76 cm) Slides
| Model | 8600A |
|---|
The Teledyne LeCroy WaveMaster 8600A oscilloscope provides 6 GHz bandwidth, 20 GS/s per channel, and extended 10 Mpts memory depth. With its SiGe front‑end, it ensures high‑signal fidelity and ultra‑fast updates via X‑Stream technology.
Ideal for advanced signal analysis, the 8600A delivers rapid data handling, deep memory capture, and comprehensive math tools for demanding applications.
Testwall can supply the used Teledyne LeCroy 8600A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy 8600A.
