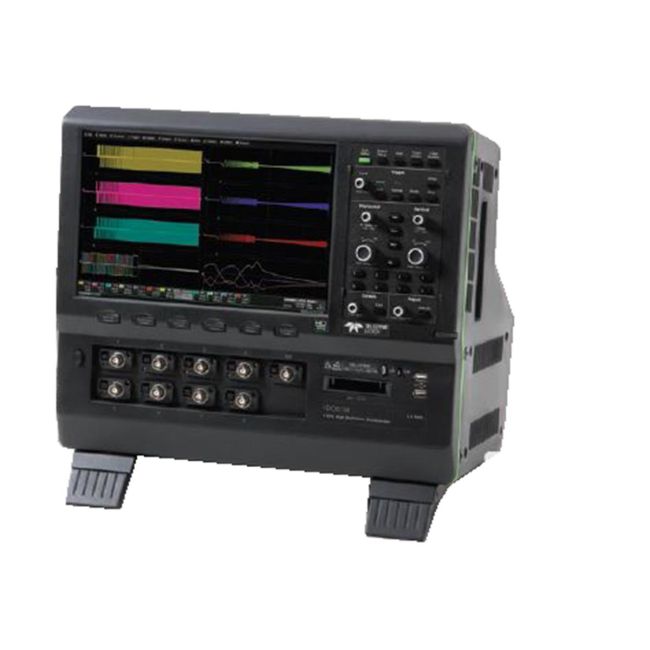

Teledyne LeCroy HDO8104
8 CHANNEL, 1GHZ, 12-BIT ADC HDO SCOPE
1 GHz Bandwidth
4 Number of Channels
2.5 GS/s Sample Rate
250 Mpts/ch Memory Depth
12-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Memory Depth | 250 Mpts/ch |
| Vertical Resolution | 12-bit |
| Display | 12.1-inch color touch screen LCD |
| Input Impedance | 1 MΩ or 50 Ω |
| Timebase Range | 200 ps/div to 800 s/div |
| Connectivity | USB, Ethernet, HDMI |
| Operating System | Windows 10 Embedded |
Teledyne LeCroy HDO8104 Options:
- HDO8104 - HDO8k-MS - Mixed Signal Oscilloscope Option (16 Digital Channels)
- HDO8104 - HDO8k-L - 100 Mpts/ch Memory Option
- HDO8104 - HDO8k-XL - 250 Mpts/ch Memory Option
- HDO8104 - HDO8k-8-UPG-32GBRAM - 8GB to 32GB CPU RAM Upgrade Option
- HDO8104 - HDO8k-RHD-02 - Additional 500GB Removable Hard Disk Drive
- HDO8104 - HDO8k-PWR - Power Analysis Option
- HDO8104 - HDO8k-DFP2 - Digital Filter Option
- HDO8104 - HDO8k-SDM - Serial Data Mask Option
- HDO8104 - HDO8k-JITKIT - Clock and Clock-Data Timing Jitter Analysis Package
- HDO8104 - HDO8k-XDEV - Developer's Tool Kit Option
- HDO8104 - HDO8k-EMC - EMC Pulse Parameter Software Package
- HDO8104 - HDO8k-ARINC429bus DSymbolic - ARINC 429 Symbolic Decode Option
- HDO8104 - HDO8k-Audiobus TD - Audiobus Trigger and Decode Option for I2S, LJ, RJ, and TDM
- HDO8104 - HDO8k-Audiobus TDG - Audiobus Trigger, Decode, And Graph Option
- HDO8104 - HDO8k-CANbus TD - CAN TD Trigger and Decode Option
- HDO8104 - HDO8k-CANbus TDM - CAN Bus Trigger, Decode & Measure/Graph Option
- HDO8104 - HDO8k-DPHYbus D - D-PHY Decode Option
- HDO8104 - HDO8k-DigRF3Gbus D - DigRF 3G Decode Option
- HDO8104 - HDO8k-DigRFv4bus D - DigRF v4 Decode Option
- HDO8104 - HDO8k-EMB - I2C, SPI and UART Trigger and Decode Option
- HDO8104 - HDO8k-ENETbus D - ENET Decode Option
- HDO8104 - HDO8k-FlexRaybus TD - FlexRay Trigger and Decode Option
- HDO8104 - HDO8k-FlexRaybus TDP - FlexRay Bus Trigger, Decode, and Physical Layer Test Option
- HDO8104 - HDO8k-I2Cbus TD - I2C Bus Trigger and Decode Option
- HDO8104 - HDO8k-LINbus TD - LIN Trigger and Decode Option
- HDO8104 - HDO8k-Manchesterbus D - Manchester Decode Option
- HDO8104 - HDO8k-1553 TD - MIL-STD-1553 Trigger and Decode Option
- HDO8104 - HDO8k-NRZbus D - NRZ Decode Option
- HDO8104 - HDO8k-ProtoBus MAG - Serial Debug Toolkit - Measure Analyze Graph
- HDO8104 - HDO8k-SENTbus D - SENT Decode Option
- HDO8104 - HDO8k-SPIbus TD - SPI Bus Trigger and Decode Option
- HDO8104 - HDO8k-UART-RS232bus TD - UART and RS-232 Trigger and Decode Option
- HDO8104 - HDO8k-USB2bus TD - USB 2.0 Trigger and Decode Option
- HDO8104 - HDO8k-USB2-HSICbus D - USB2-HSIC Decode Option
- HDO8104 - HDO8k-VBA - Vehicle Bus Analyzer Bundle (CAN TDM, CAN Symbolic, FlexRay TDP, LIN TD and Protobus MAG)
- HDO8104 - HDO8k-FP-GERMAN - German Front Panel Overlay
- HDO8104 - HDO8k-FP-FRENCH - French Front Panel Overlay
- HDO8104 - HDO8k-FP-ITALIAN - Italian Front Panel Overlay
- HDO8104 - HDO8k-FP-SPANISH - Spanish Front Panel Overlay
- HDO8104 - HDO8k-FP-JAPANESE - Japanese Front Panel Overlay
- HDO8104 - HDO8k-FP-KOREAN - Korean Front Panel Overlay
- HDO8104 - HDO8k-FP-CHNES-TR - Chinese (Traditional) Front Panel Overlay
- HDO8104 - HDO8k-FP-CHNES-SI - Chinese (Simplified) Front Panel Overlay
- HDO8104 - HDO8k-FP-RUSSIAN - Russian Front Panel Overlay
- HDO8104 - HDO8k-SOFTCASE - Soft Carrying Case
- HDO8104 - HDO8k-RACK - Rack Mount Accessory
| Model | HDO8104 |
|---|
The Teledyne LeCroy HDO8104 is a high-performance oscilloscope offering 1 GHz bandwidth and 12-bit resolution across 4 channels. It provides 2.5 GS/s sampling on all channels, supported by a large 12.1-inch touchscreen and up to 250 Mpts/channel memory for precise signal analysis.
Ideal for embedded system debugging, it delivers high-fidelity waveform capture and ensures reliable performance for complex signal diagnostics.
Testwall can supply the used Teledyne LeCroy HDO8104, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy HDO8104.
