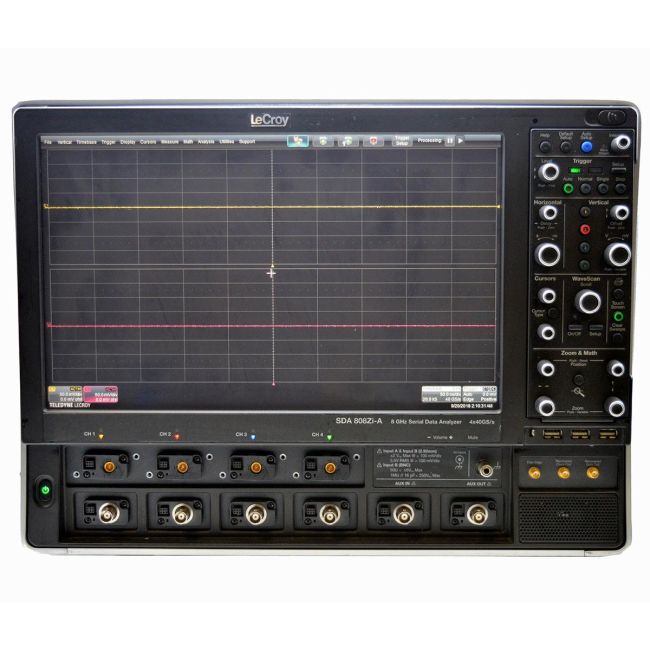

Teledyne LeCroy SDA-808ZI-A
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Sample Rate | 40 GS/s |
| Number of Channels | 4 Analog Channels |
| Memory Depth | 256 Mpts/Ch (standard), up to 2 Gpts/Ch (optional) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Rise Time | 56 ps |
| Input Impedance | 50 Ω |
| Display | 15.3-inch color LCD touchscreen |
| Serial Data Analysis | Integrated Serial Data Analyzer (SDA) with SDAIII CompleteLinQ software |
| Connectivity | USB, Ethernet (LAN), GPIB (optional) |
| Model | SDA-808ZI-A |
|---|
The Teledyne LeCroy SDA-808Zi-A delivers advanced performance with 8 GHz analog bandwidth and up to 40 GS/s real-time sample rate. It integrates jitter, noise, and eye diagram analysis tools, enabling precise validation of high-speed designs and next-generation serial standards. Its superior signal fidelity ensures accurate measurements for complex compliance testing requirements.
Designed for USB 3.0, SAS, and HDMI compliance testing, the SDA-808Zi-A supports multi-channel analysis, making it ideal for high-speed serial data debugging and validation across a wide range of applications.
Testwall can supply the used Teledyne LeCroy SDA-808Zi-A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy SDA-808Zi-A.
