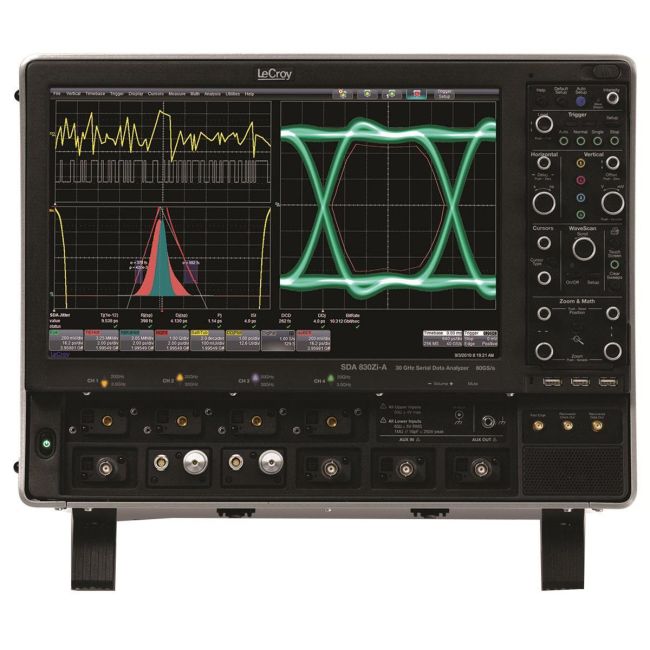

Teledyne LeCroy SDA-830ZI-B
| Attribute | Value |
|---|---|
| Bandwidth | 30 GHz |
| Sample Rate | 80 GS/s |
| Number of Channels | 4 Analog Channels |
| Memory Depth | 256 Mpts/Ch (standard), up to 2 Gpts/Ch (optional) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Rise Time | 11.7 ps |
| Input Impedance | 50 Ω |
| Display | 15.3-inch color LCD touchscreen |
| Serial Data Analysis | Integrated Serial Data Analyzer with SDAIII CompleteLinQ software for eye diagram, jitter, and noise analysis |
| Connectivity | USB, Ethernet (LAN), GPIB (optional) |
| Model | SDA-830ZI-B |
|---|
The Teledyne LeCroy SDA-830Zi-B provides 30 GHz analog bandwidth and 80 GS/s sample rate, making it perfect for advanced serial data testing. Equipped with FastEye™ and the SDAIII analysis suite, it delivers precise jitter, eye diagram, and margin analysis. The calibrated timebase ensures ultra-low jitter performance, essential for accurate high-speed measurements.
This oscilloscope is tailored for 100G Ethernet, InfiniBand, and other next-generation high-speed serial links, offering reliable eye height and width margin testing for comprehensive analysis.
Testwall can supply the used Teledyne LeCroy SDA-830Zi-B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy SDA-830Zi-B.
