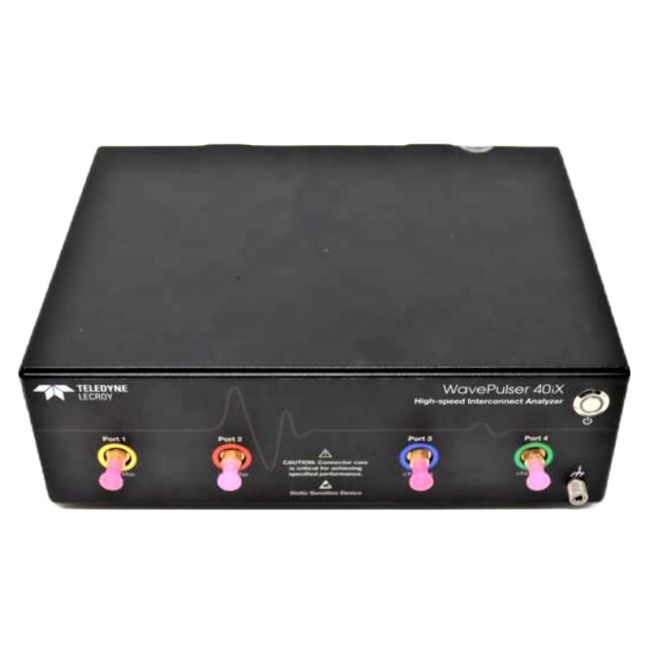

Teledyne LeCroy WAVEPULSER 40IX
| Attribute | Value |
|---|---|
| Bandwidth | 40 GHz |
| Rise Time | 9 ps |
| Number of Channels | 4 |
| Pulse Amplitude | Up to 2.5 V into 50 Ω |
| Impedance | 50 Ω |
| Sample Rate | 160 GSa/s |
| Connector Type | 2.92 mm (K-type) SMA |
| Operating Temperature | 5°C to 40°C |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Interface/Connectivity | USB, Ethernet (LAN) |
Teledyne LeCroy WAVEPULSER 40IX Options:
- WAVEPULSER 40IX - WavePulser-40iX - High-speed Interconnect Analyzer, 4-port, S-parameters DC-40 GHz, <1 mm Spatial Resolution, Internal Calibration, 4 phase matched cables
- WAVEPULSER 40IX - WavePulser-40iX-BUNDLE - High-speed Interconnect Analyzer Bundle; Includes WavePulser-40iX and WavePulser-40iX-SI-KIT
- WAVEPULSER 40IX - WavePulser-40iX-SI-KIT - Deep Analysis toolbox including emulation of equalized eye-diagrams (CTLE, FFE, DFE, PLL) and advanced jitter analysis and simulation of serial-data patterns with controlled impairments. Also includes USB Hasp Key, female 2.92mm adapters (4 total), OSLT calibration kit, universal wrench, and torque wrench
- WAVEPULSER 40IX - WavePulser-SISTUDIO - Additional license (USB Hasp Key) for Signal Integrity Studio, Analysis & Simulation SW for WavePulser 40iX High-Speed Interconnect Analyzer
| Model | WAVEPULSER 40IX |
|---|
The Teledyne LeCroy WavePulser 40iX is a transient voltage generator designed to deliver fast-rising high-voltage pulses in the kilovolt range. It features precise width and interval control, with trigger synchronization capabilities that integrate seamlessly with waveform capture systems.
Engineered for compliance stress testing and surge simulation, the WavePulser 40iX enables robust component verification under demanding conditions, ensuring accurate and repeatable results.
Testwall can supply the used Teledyne LeCroy WavePulser 40iX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy WavePulser 40iX.
