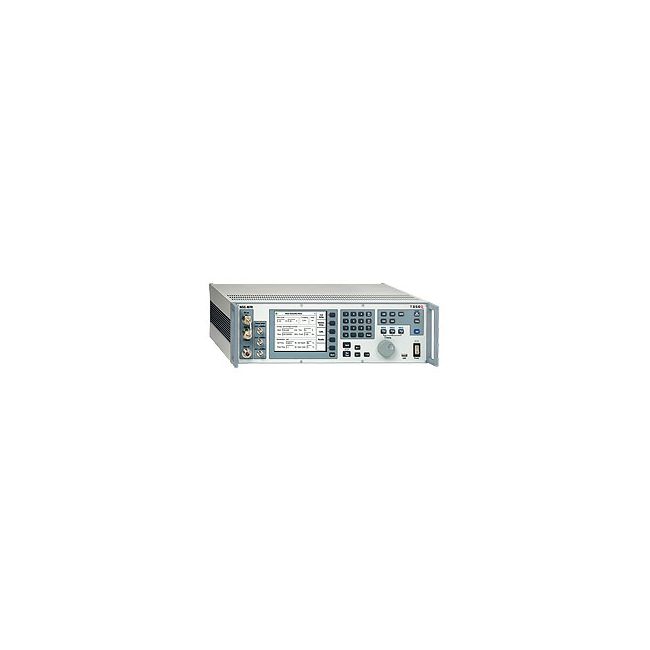

Teseq (Schaffner) NSG 4070
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz – 30 MHz |
| Output Voltage | Up to 4 kV peak (open circuit) |
| Output Current | Up to 200 A peak (short circuit) |
| Impedance | 50 Ω / 150 Ω selectable |
| Conducted Immunity Standards | IEC 61000-4-6, ISO 11452-7 |
| Modulation | AM 80% at 1 kHz sine wave |
| RF Output Power | Up to 150 W continuous |
| Interface / Connectivity | USB, LAN (Ethernet), GPIB |
| Display | Color touchscreen LCD |
| Power Supply Input | 100–240 V AC, 50/60 Hz |
Teseq (Schaffner) NSG 4070 Options:
- NSG 4070 - NSG 4070-0 - Compact immunity test system NSG 4070, 9 kHz - 1 GHz RF generator and power meter (without power amplifier)
- NSG 4070 - NSG 4070-20 - Compact immunity test system NSG 4070, 9 kHz - 1 GHz RF generator and power meter (with 20 W module 150 kHz - 230 MHz)
- NSG 4070 - NSG 4070-30 - Compact immunity test system NSG 4070, 9 kHz - 1 GHz RF generator and power meter (with 30 W module 150 kHz - 230 MHz)
- NSG 4070 - NSG 4070-75 - Compact immunity test system NSG 4070, 9 kHz - 1 GHz RF generator and power meter (with 75 W module 150 kHz - 230 MHz)
- NSG 4070 - NSG 4070-TC - Traceable calibration (ISO17025), order only with the device
- NSG 4070 - NSG 4070-DKD - DKD calibration (ISO17025), order only with the device
- NSG 4070 - NSG 4070 Rack - Rack mounting kit for NSG 4070
- NSG 4070 - SW 4070 - Option for NSG 4070: RF-Switch network 2x SPDT
| Model | NSG 4070 |
|---|
The Teseq Schaffner NSG 4070 is a flagship multifunctional immunity test system spanning 9 kHz to 1 GHz for development and certification workflows. It integrates a wideband signal generator, internal amplifier modules (35–110 W depending on configuration), and multiple input power meters enabling forward/reverse power measurement. An integrated 5.7″ TFT color display with menu‑driven firmware simplifies setup, while USB supports automated test documentation and data export as part of a streamlined bench solution.
Compliant with IEC 61000‑4‑6, ‑4‑3, ‑4‑20, and ‑4‑21, the NSG 4070 runs standalone or under remote control, delivering reliable, repeatable immunity testing across conducted and radiated applications.
Testwall can supply the used Teseq Schaffner NSG 4070, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teseq Schaffner NSG 4070.
