Test Equity 101H-F
| Attribute | Value |
|---|---|
| Temperature Range | -5°C to 100°C (23°F to 212°F) |
| Humidity Range | 10% to 95% RH (non-condensing) |
| Interior Volume | 1.0 cubic foot (28 liters) |
| Temperature Stability | ±0.5°C |
| Humidity Stability | ±2.5% RH |
| Temperature Uniformity | ±1.0°C |
| Power Requirements | 120V, 60Hz, 8A |
| Controller Type | Programmable PID digital controller |
| External Dimensions (W x H x D) | 19.5 in x 22.5 in x 21.5 in |
| Refrigeration System | Mechanical refrigeration with single compressor |
| Model | 101H-F |
|---|

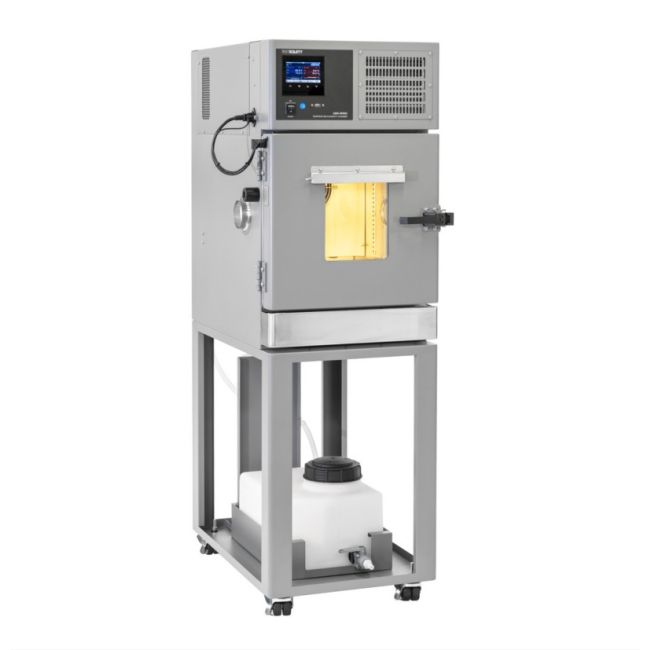

Test Equity 101H-F Temperature & Humidity Chamber
Test Equity 101H-F Temperature & Humidity Chamber is a single-stage refrigeration system that is capable of achieving workspace temperatures down to -30 °C plus the ability to control humidity from 10% to 95% RH. This is the best choice when you need a small humidity chamber. This floor-standing version requires minimal floor space. Featuring F4T Touch Screen Temperature/Humidity Controller including RS-232 and Ethernet interfaces, Test Equity 101H-F Temperature & Humidity Chamber is very easy and intuitive to use. GPIB is available as an option.
Test Equity 101H-F Temperature & Humidity Chamber is having better humidity stability throughout the entire operating range compared to steam generators. This system includes water recirculation system which provides a reliable source of demineralized water for the humidity system, using ordinary tap water. It's having a fast-responding Vaisala capacitive-type sensor which eliminates the need for unreliable wet-wicks. It's heated Viewing Widow helps to eliminate fog and condensation without a manual wiper. Test Equity 101H-F Temperature & Humidity Chamber is having two 3in Access Ports to attach wires and sensors to the test sample through both the left and right side of the chamber. A heavy-duty stainless steel wire shelf ensures proper airflow around your test sample for uniform temperature distribution.
Specifications for the Test Equity 101H-F Temperature & Humidity Chamber Include:
| System measuring distance | -30 °C to +130 °C |
| No. of Ports | 2 x 3" |
| Interior Volume | 1.1 Cu Ft |
| Humidity Range | 10% to 95% RH |
