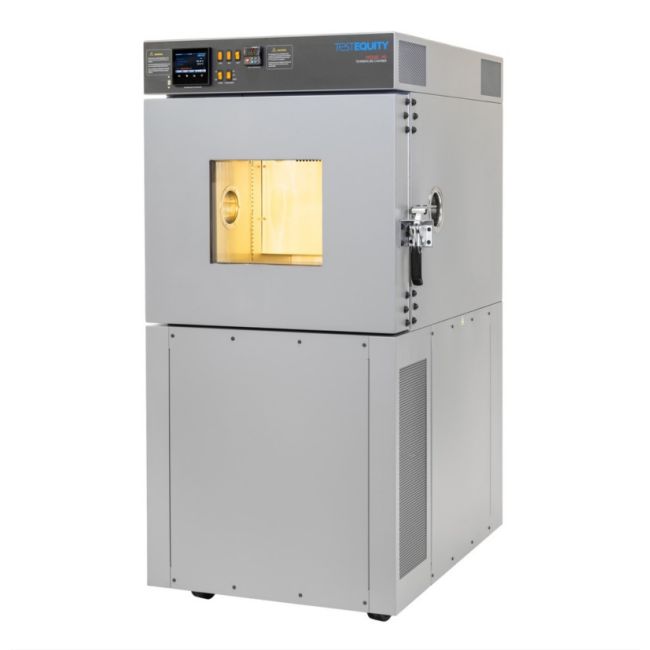

Test Equity 140

The Test Equity 140 Temperature Chamber provides full-range temperature testing with the smallest footprint in its class. Based on the field proven technology of the  popular Test Equity  1007C, it offers a more compact package at an economical price.

The Test Equity 140 Environmental Chamber features a High/Low Temperature Limit Controller and Alarm. A  Limit Controller Provides independent protection against excess temperatures. Both high and low limits can be set. The limit controller will shut down the chamber and trigger the audible alarm in the event of an out of limit condition. A set of uncommitted contacts are available to provide a safety power interlock for your test sample.

Viewing Window:  A  unique design virtually eliminates exterior window sweating during normal temperature cycling conditions.

Two 4" Access Ports:  Allows  you to attach wires and sensors to your test sample through both the left and right side of the chamber.

Adjustable Shelf:  A heavy-duty stainless steel wire shelf ensures proper airflow around your test sample for uniform temperature distribution.

Chamber Condensate Drain:  The chamber floor has a drain to permit removal of condensate from the evaporator that can occur when cycling between low to high temperatures.

Casters:  Rugged 3" casters permit easy movement.

Power Cord with Plug:  Heavy-duty power cord has a NEMA L6-30P twist-lock plug. Chamber requires 208V or 230V, 1 PH power.

Non-CFC refrigerants are used in a cascade (two compressors) configuration. Expansion valves provide optimum performance throughout the operating range. Pressure regulators keep the operating pressures within safe limits regardless of load conditions. Liquid injection ensures cool compressor operation during high-temperature pull down for long life. Sequential starting of each compressor reduces the cur demand on start-up. Each compressor is protected by a pressure switch. Care has been taken to use a minimum number of fittings, joints and welds to reduce the possibility of refrigerant leaks.

All electrical control components are UL approved. Each branch circuit is individually protected with class-CC fuses. The nichrome air-heater has a low watt-density and even heat distribution for reliable performance and fast response. A fusible link provides fail-safe protection against thermal runaways, in addition to the microprocessor-based high/low limit controller.

The side and rear panels are removable to permit complete access to the refrigeration system for ease of service and preventive maintenance.

The 140 chamber can be specified with either the original F4 controller, or optionally, the latest F4T touchscreen controller:

• F4 controller, up to 256 steps can be programmed into as many as 40 nameable profiles. The context sensitive information key and guided steps make profile programming fast and easy. A four-line backlit LCD displays programming, setup, operating and help information. A large LED readout indicates the actual chamber temperature with 0.1 ° resolution. Internal logic provides refrigeration compressor control for responsive and reliable performance. Includes two alarms and seven event outputs to control remote devices. RS-232C communications is also included. GPIB, Ethernet and analog retransmit are available as options.
• F4T Controller:  The F4T is our next-generation controller. Featuring a touch-screen interface, it's exceptionally easy and intuitive to use. Includes RS-232 and Ethernet interfaces. GPIB is available as an option.

Features and specifications of the Test Equity 140 Chamber include:

• -73 °C to +175 °C Temperature Range
• 4 Cu Ft Workspace, 22"W x 18"H x 18"D (116 Liters)
• Choice of Original F4 Temperature Controller or Optional F4T Touch Screen Controller
• High/Low Limit Control and Alarm
• Viewing Window & Interior Light
• 4" Access Ports on Left & Right Side
• Non-CFC Cascade Refrigeration
