Viavi (Aeroflex IFR)

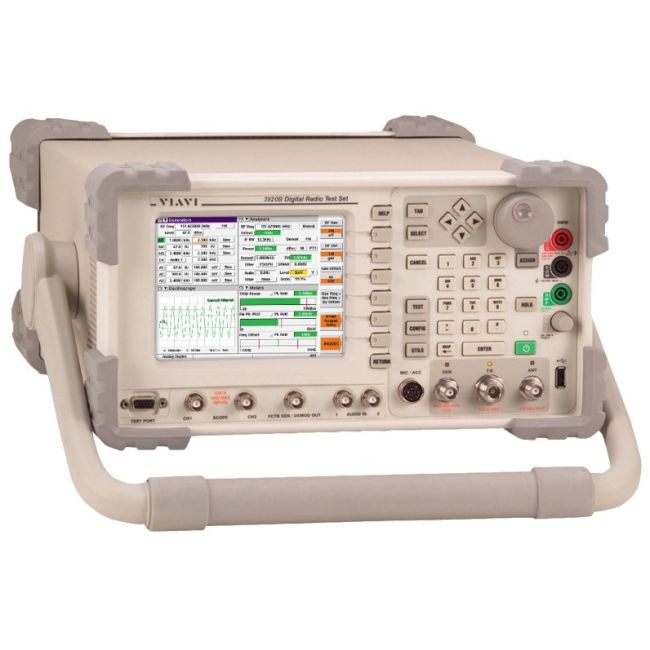

Viavi (Acterna Aeroflex IFR Marconi) 3920B
Digital and Analog Radio Test Set
100 kHz to 1 GHz Frequency Range
-137 dBm to +13 dBm RF Power Output
1 Hz Frequency Resolution
AM, FM, PM, SSB, DSB, FSK, DQPSK, and more Modulation Types
20 Hz to 20 kHz Audio Frequency Range
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1 GHz |
| RF Power Output | -137 dBm to +13 dBm |
| Frequency Resolution | 1 Hz |
| Modulation Types | AM, FM, PM, SSB, DSB, FSK, DQPSK, and more |
| Audio Frequency Range | 20 Hz to 20 kHz |
| Spectrum Analyzer Range | 100 kHz to 1 GHz |
| Power Meter Range | -70 dBm to +60 dBm |
| Duplex Operation | Full duplex radio testing capability |
| Interface | GPIB, RS-232, and Ethernet |
| Display | Color TFT LCD touchscreen display |
Viavi (Acterna Aeroflex IFR Marconi) 3920B Options:
- 3920B - 390XOPT051 - Site Monitoring Application
- 3920B - 390XOPT054 - IQ Gen Modulation (for IQ Creator waveforms)
- 3920B - 390XOPT055 - Audio Analyzer
- 3920B - 392XOPT058 - 2.7 GHz Frequency Range Extension Option
- 3920B - 390XOPT059 - Auto-Test II Analog
- 3920B - 390XOPT060 - Harmonics & Spurious Measurements
- 3920B - 390XOPT061 - Tracking Generator
- 3920B - 390XOPT064 - Analog Duplex Power Between Markers
- 3920B - 390XOPT067 - POCSAG
- 3920B - 390XOPT090 - Chinese GUI
- 3920B - 390XOPT110 - TETRA MS (Mobile Station Testing)
- 3920B - 390XOPT111 - TETRA BS (Base Station Testing)
- 3920B - 390XOPT112 - TETRA DM (Direct Mode Testing)
- 3920B - 390XOPT114 - TETRA Energy Economy Mode (Requires 390XOPT110)
- 3920B - 390XOPT115 - Auto-Test II TETRA
- 3920B - 390XOPT200 - P25 Conventional Operation (with DES OFB Type III)
- 3920B - 390XOPT201 - P25 Trunking Operation VHF/UHF/700/800 MHz (Requires 390XOPT200)
- 3920B - 390XOPT204 - LSM Generate and Receive/Analysis (Requires 390XOPT200)
- 3920B - 390XOPT206 - P25 Control Channel Logger Option (Requires 390XOPT200)
- 3920B - 390XOPT207 - SmartZone and SMARTNET Option (Requires 390XOPT200)
- 3920B - 390XOPT209 - KVL Keyloader Option (Requires 390XOPT200)
- 3920B - 390XOPT210 - Analog Simulcast Option (Requires 390XOPT055)
- 3920B - 390XOPT212 - Explicit Mode Trunking (Requires 390XOPT200 and 390XOPT201)
- 3920B - 390XOPT213 - Unit to Unit Call (Requires 390XOPT200, 390XOPT201, and 390XOPT212)
- 3920B - 390XOPT214 - Adjacent Channel Broadcast Message (Requires 390XOPT200 and 390XOPT201)
- 3920B - 390XOPT215 - Secondary Control Channel Broadcast Message (Requires 390XOPT200 and 390XOPT201)
- 3920B - 390XOPT218 - Auto-Test II for P25 Radio Systems (Requires 390XOPT200)
- 3920B - 390XOPT219 - X2-TDMA Test Suite (Requires 390XOPT200 and 390XOPT201) - Available through Motorola Only
- 3920B - 390XOPT220 - Phase II Two-Slot Time Division Multiple Access Physical Layer (Requires 390XOPT200)
- 3920B - 390XOPT230 - Off Air Monitor Software for P25 Message Logging - Protocol Analysis Tool (Requires 390XOPT200 and 390XOPT206)
- 3920B - 390XOPT240 - P25 AES Encryption (Requires 390XOPT200)
- 3920B - 390XOPT245 - X2-TDMA Mobile Emulator (Requires 390XOPT200, 390XOPT201, and 390XOPT219) - Available through Motorola Only
- 3920B - 390XOPT250 - Occupied Bandwidth for P25 (Requires 390XOPT200)
- 3920B - 390XOPT260 - P25 Performance Test Triggers
- 3920B - 390XOPT261 - X2-TDMA Advanced Test Suite - Combines 390XOPT219 and 390XOPT245 (Requires 390XOPT200 and 390XOPT201) - Available through Motorola Only
- 3920B - 390XOPT300 - Motorola HPD Testing Option (Available through Motorola Only)
- 3920B - 390XOPT301 - Motorola HPD Advanced Analysis Package (Available through Motorola Only)
- 3920B - 390XOPT302 - Motorola HPD Testing Suite - Combines 390XOPT300 and 390XOPT301
- 3920B - 390XOPT303 - Auto-Test II for HPD Radio Systems (Requires 390XOPT300)
- 3920B - 390XOPT400 - DMR (MOTOTRBO) ETSI 102-361
- 3920B - 390XOPT401 - Auto-Test II for DMR Radio Systems (Requires 390XOPT400)
- 3920B - 390XOPT402 - DMR XML Channel Logger Option (Requires 390XOPT400)
- 3920B - 390XOPT420 - dPMR - ETSI 102-658
- 3920B - 390XOPT421 - Auto-Test II for dPMR Radio Systems (Requires 390XOPT420)
- 3920B - 390XOPT422 - dPMR XML Channel Logger Option (Requires 390XOPT420)
- 3920B - 390XOPT440 - NXDN
- 3920B - 390XOPT441 - Auto-Test II for NXDN Radio Systems (Requires 390XOPT440)
- 3920B - 390XOPT442 - NXDN XML Channel Logger Option (Requires 390XOPT440)
- 3920B - 390XOPT460 - ARIB T98
- 3920B - 390XOPT461 - Auto-Test II for ARIB T98 Radio Systems (Requires 390XOPT460)
- 3920B - 390XOPT600 - Motorola ASTRO 25 Series Auto-Test/Alignment Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT601 - Motorola ASTRO Series Auto-Test/Alignment Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT602 - Motorola ASTRO 25 Series XTL Power Auto-Test/Alignment Software (Requires 390XOPT600, 390XOPT200, 390XOPT218, 392XOPT061, and AC24011)
- 3920B - 390XOPT603 - TIA/EIA-603 Land Mobile Test Software (Requires 390XOPT059)
- 3920B - 390XOPT604 - Motorola APX Series Auto-Test/Alignment Software (Requires 390XOPT200, 390XOPT218, 390XOPT061, and AC24011)
- 3920B - 390XOPT606 - EF Johnson ES Series Auto-Test/Alignment Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT607 - BK DPHX5102X Series Radio Alignment Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT608 - Kenwood P25 TK-5X10G Series Radio Auto-Test/Alignment Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT610 - MOTOTRBO Radio Auto-Test/Alignment Software (Requires 390XOPT400, 390XOPT401, 390XOPT061, and AC24011)
- 3920B - 390XOPT611 - Motorola TETRA MS Auto-Test (Requires 390XOPT110 and 390XOPT115; includes 390XOPT054 as standard)
- 3920B - 390XOPT614 - Technisonics Type 1 Radio Auto-Test/Alignment Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT615 - Technisonics Type 2 Radio Auto-Test/Alignment Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT616 - Harris P7300, P5500 and XG-75 Auto-Test/Alignment Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT625 - Harris P7300, P5500, XG75 Series ADVANCED Auto-Test/Alignment Software (Requires 390XOPT616, 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT626 - DMR Repeater Auto-Test Software (Requires 390XOPT400, 390XOPT401, and 390XOPT061)
- 3920B - 390XOPT627 - KNG Series Auto-Test/Alignment Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT628 - Hytera DMR Series Auto-Test/Alignment Software (Requires 390XOPT400, 390XOPT401, and 390XOPT061)
- 3920B - 390XOPT629 - Tait TP/TM9100, TP/TM9400 P25 Series Auto-Test ONLY (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT630 - Kenwood 5x20 Series Auto-Test/Alignment Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT631 - Kenwood NXDN Series Auto-Test/Alignment Software (Requires 390XOPT440, 390XOPT441, and 390XOPT061)
- 3920B - 390XOPT633 - EF Johnson Viking Series Auto-Test/Alignment Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 390XOPT636 - Relm KNG S-Series (Portables only) Auto-Test/Alignment (Requires 390XOPT200, 390XOPT201, and 390XOPT601)
- 3920B - 390XOPT637 - Harris XL-200P Auto-Test Software (Requires 390XOPT200, 390XOPT218, and 390XOPT061)
- 3920B - 3920OPT644 - Motorola APX 8000 Series Auto-Test/Alignment Software (Requires 390XOPT604)
- 3920B - 3920OPT645 - Motorola APX B Series Auto-Test/Alignment Software (Requires 390XOPT604)
| Model | 3920B |
|---|
The VIAVI 3920B is a high-performance analog/digital radio communications test platform designed for mission-critical environments. It features a low-phase-noise RF generator (≈ –110 dBc/Hz at 10 kHz offset), extensive analog metrics (AM/FM, audio SINAD/distortion, deviation, modulation index), and digital flexibility with modular standards like P25 and TETRA.
The built-in Linux PC, USB ports, 30 GB storage, and dual-channel color-coded channel analyzer offer wide testing capabilities up to 2.7 GHz with Auto-Test II alignment support.
Testwall can supply the used VIAVI / Acterna / Aeroflex / IFR / Marconi 3920B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the VIAVI / Acterna / Aeroflex / IFR / Marconi 3920B.
