Viavi (Acterna Aeroflex IFR Marconi) ATC-5000NG
| Attribute | Value |
|---|---|
| Transponder Modes Supported | Mode A, Mode C, Mode S (Elementary and Enhanced Surveillance), TCAS/ACAS |
| Frequency Range | 1030 MHz (interrogation) / 1090 MHz (reply) |
| DME Test Capability | DME interrogator simulation with distance measurement from 0 to 399.9 NM |
| ATCRBS Sensitivity | Minimum Triggering Level (MTL) measurement down to -74 dBm |
| Output Power Measurement | Transponder peak power measurement from 10 mW to 2000 W |
| Altitude Simulation Range | -1,200 ft to 126,750 ft (Gillham code and Mode C encoding) |
| Mode S Address Capability | 24-bit ICAO address interrogation and decoding with squitter analysis |
| Display Type | High-resolution color LCD touchscreen display |
| Power Supply | AC mains (100–240 V, 50/60 Hz) and internal rechargeable battery operation |
| Portability / Form Factor | Portable, handheld/tabletop unit designed for ramp and bench testing applications |
Viavi (Acterna Aeroflex IFR Marconi) ATC-5000NG Options:
- ATC-5000NG - ATCNGOPT01 - DME Option
- ATC-5000NG - ATCNGOPT02 - UAT 978MHZ Option
- ATC-5000NG - ATCNGOPT03 - Multi-receiver Option
- ATC-5000NG - ATCNGOPT04 - SDX-2000 Command Set Compatibility Option
- ATC-5000NG - ATCNGOPT05 - ATC-1400A / S-1403DL Command Set Compatibility Option
- ATC-5000NG - ATCNGOPT06 - DO-260B MOPS Test Option (requires Multi-Receiver Option)
| Model | ATC-5000NG |
|---|

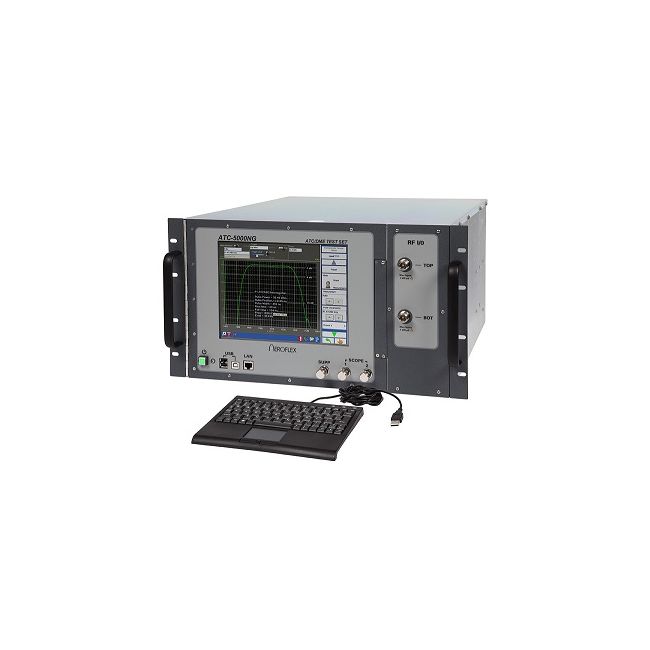

The Viavi (Acterna Aeroflex IFR Marconi) ATC-5000NG is a next-generation RF test set designed for transponder and DME system verification. It features a fully software-defined platform supporting Mode A, C, and Mode S interrogations per DO-181E standards. The unit integrates dual independent transmit/receive chains, a 10.4″ touchscreen interface, remote control via Ethernet/GPIB, and compatibility with legacy systems like SDX‑2000 and ATC‑1400A.
Additional capabilities include ADS‑B squitter generation/decoding, ADS‑B‑In reception, UAT transmission/reception, and multi-receiver support. Engineering unit logging and data logging are also supported.
Testwall can supply the used Viavi (Acterna Aeroflex IFR Marconi) ATC-5000NG, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Viavi (Acterna Aeroflex IFR Marconi) ATC-5000NG.
