Viavi (Acterna Aeroflex IFR Marconi) AVX-10K
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz to 1 GHz |
| Output Level Range | -137 dBm to +13 dBm |
| FM Deviation | Up to 150 kHz |
| AM Depth | 0% to 99.9% |
| Frequency Resolution | 1 Hz |
| Modulation Types | AM, FM, Phase Modulation (PM), Pulse Modulation |
| Spectral Purity (SSB Phase Noise) | -110 dBc/Hz at 20 kHz offset |
| Output Impedance | 50 Ohms |
| Power Supply | 90–265 VAC, 47–63 Hz |
| Interface / Connectivity | GPIB (IEEE-488), RS-232 |
Viavi (Acterna Aeroflex IFR Marconi) AVX-10K Options:
- AVX-10K - AVX-10K-FLTS - Preconfigured Kit: Test Set Only
- AVX-10K - AVX-10K-NAV - Preconfigured Kit: NAV/COMM
- AVX-10K - AVX-10K-SVLC - Preconfigured Kit: Surveillance
- AVX-10K - AVX-10K-CNS - Preconfigured Kit: COMM/NAV/SVLC
- AVX-10K - AVX-10K-SXPDR - Software Option: Transponder Modes A, C, S
- AVX-10K - AVX-10K-SADSB - Software Option: ADS-B In/Out/GICB/Target Gen
- AVX-10K - AVX-10K-STCAS - Software Option: TCAS I/II
- AVX-10K - AVX-10K-SDME - Software Option: DME
- AVX-10K - AVX-10K-SUAT - Software Option: UAT In/Out
- AVX-10K - AVX-10K-SNAV - Software Option: Navigation (ILS/MB/VOR)
- AVX-10K - AVX-10K-SELT - Software Option: ELT 121.5/243/406MHz
- AVX-10K - AVX-10K-SCOM - Software Option: Radio Test AM/FM (Comms)
- AVX-10K - AC10K-PWRCRD-US/CAN - Selectable Power Cord: US / Canada
- AVX-10K - AC10K-PWRCRD-EU - Selectable Power Cord: Continental Europe
- AVX-10K - AC10K-PWRCRD-AUSNZ - Selectable Power Cord: Australia / New Zealand
- AVX-10K - AC10K-PWRCRD-INDIA - Selectable Power Cord: India
- AVX-10K - AC10K-PWRCRD-UK/IRE - Selectable Power Cord: UK / Ireland
- AVX-10K - AC10K-PWRCRD-SWITZ - Selectable Power Cord: Switzerland
| Model | AVX-10K |
|---|

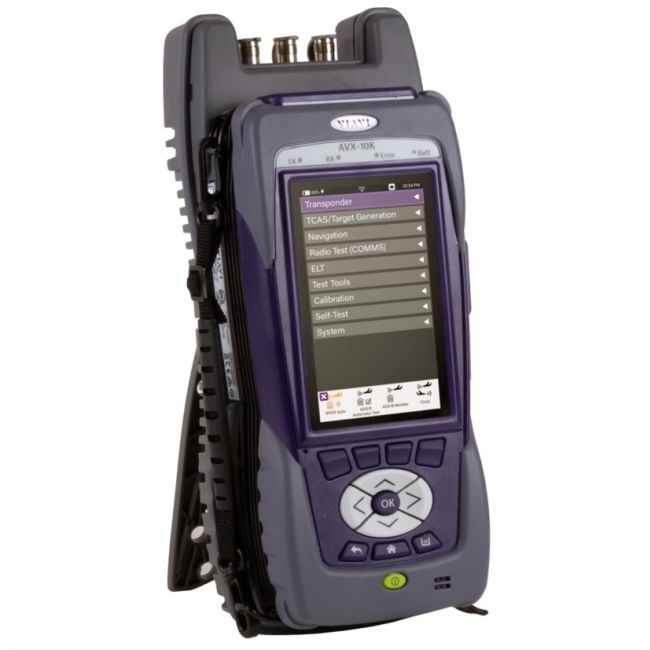

The VIAVI AVX-10K is a comprehensive flight-line avionics test workstation designed for both automated and manual diagnostics of airborne systems. It consolidates tests for transponders, TCAS, ADS-B, VOR, DME, and communication/navigation and weather radar systems. The unit is compact (41 lb), rugged, and easily transportable, suitable for both hangar and cockpit use with seamless connectivity via USB, Ethernet, or wireless.
Equipped with touchscreen and mobile app control, it enables efficient, flexible field diagnostics and supports the VIAVI Mobile Tech App for optimized data handling and export.
Testwall can supply the used VIAVI AVX-10K, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the VIAVI AVX-10K.
