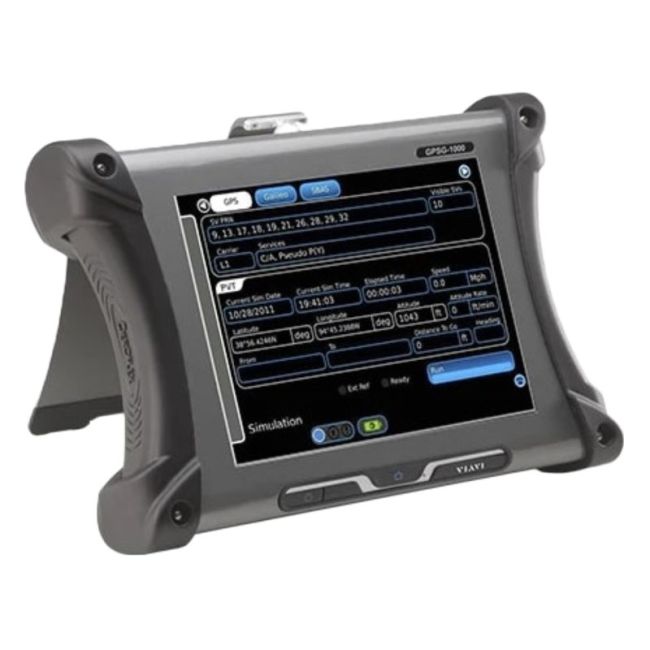

Viavi (Acterna Aeroflex IFR Marconi) GPSG-1000
| Attribute | Value |
|---|---|
| GPS Signal Simulation | Simulates up to 12 GPS satellites simultaneously |
| Frequency Output | L1 (1575.42 MHz) and L2 (1227.60 MHz) |
| RF Output Level Range | -70 dBm to -130 dBm (adjustable) |
| Positioning Accuracy | Position, velocity, and time (PVT) simulation with high precision |
| Scenario Simulation | Static and dynamic scenario simulation including vehicle, aircraft, and marine trajectories |
| WAAS/SBAS Support | Supports WAAS, EGNOS, and MSAS augmentation signal simulation |
| Interface | RS-232 serial interface and GPIB for remote control and automation |
| Power Supply | AC 100–240 V, 50/60 Hz universal power input |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Form Factor | Portable, handheld/benchtop unit suitable for field and lab use |
Viavi (Acterna Aeroflex IFR Marconi) GPSG-1000 Options:
- GPSG-1000 - 87339 - GPSG-1000 12 Satellite Simulator
- GPSG-1000 - 140607 - GPSGOPT3 ADS-B Integrity Test Option
| Model | GPSG-1000 |
|---|
The Viavi/Aeroflex GPSG-1000 is a portable simulator designed to generate GPS and Galileo signals, supporting L1, L1C, L2C, L5, E1, E5a, E5b, and E6 bands, along with SBAS systems like WAAS, EGNOS, MSAS, and GAGAN. It offers 6- or 12-channel configurations with RAIM support, software upgradeability, and NMEA-0183 compatibility.
Ideal for validating receiver performance, it features dynamic 3D flight path simulations, trajectory modeling, large touchscreen operation, and LAN/USB remote control options.
Testwall can supply the used Viavi/Aeroflex GPSG-1000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Viavi/Aeroflex GPSG-1000.
