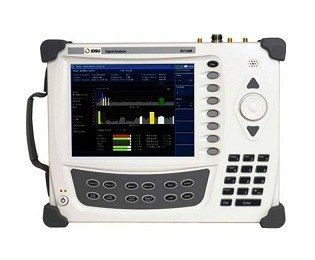

Viavi JD7105B
| Attribute | Value |
|---|---|
| Spectrum Analyser Range | 100 kHz to 7.2 GHz |
| DANL | -145 dBm (< 1 GHz, 1 Hz RBW); -160 dBm with preamp |
| Cable & Antenna Range | 25 MHz to 4 GHz |
| DTF Range | Up to 1,500 m |
| Power Meter | Internal 10 MHz to 7.2 GHz, -120 to +30 dBm |
| Display | 8 in colour, daylight-readable |
Viavi JD7105B Options:
- 002 - E1 analyser
- 003 - T1 analyser
- 010 - GPS receiver and antenna
- 011 - Interference analyser
- 012 - Channel scanner
- 013 - Bias tee
- 020 - CDMA2000 signal analyser
- 021 - EV-DO signal analyser (requires 020)
- 022 - GSM/GPRS/EDGE signal analyser
- 023 - WCDMA signal analyser
- 024 - HSDPA signal analyser (requires 023)
- 025 - TD-SCDMA signal analyser
- 026 - Mobile WiMAX signal analyser
- 028 - LTE signal analyser
- 040-046 - OTA analysers for matching standards (require 010)
The Viavi (JDSU) CellAdvisor JD7105B is a base station analyser for 2G to 4G cell-site installation and maintenance, combining a 100 kHz to 7.2 GHz spectrum analyser, 25 MHz to 4 GHz cable and antenna analyser and 10 MHz to 7.2 GHz power meter. It also offers interference analysis, channel scanning, E1/T1 analysis, GPS, a built-in bias tee and CW source. It has an 8 in daylight-readable colour display and backlit keypad.
Signal analysis options cover cdma2000, EV-DO, GSM/GPRS/EDGE, WCDMA/HSDPA, TD-SCDMA, Mobile WiMAX and LTE, with OTA variants requiring the GPS option. Legacy predecessor of the JD745A/JD785A family.
Testwall can supply the used Viavi JD7105B, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Viavi JD7105B.
