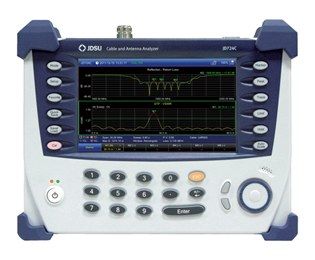

Viavi JD723C
| Attribute | Value |
|---|---|
| Frequency Range | 100 MHz to 2.7 GHz |
| Measurements | Return loss, VSWR, DTF, cable loss, RF power (1-port) |
| DTF Range | Up to 1,500 m |
| Data Points | 126, 251, 501, 1001, 2001 |
| Directivity | > 42 dB typical after OSL calibration |
| RF Power Meter | -80 to +120 dBm display range |
| Display | 7 in, 800 x 480 resistive touchscreen, transflective LCD |
| Battery | Li-ion 10.8 V 7800 mAh, > 7.5 h typical |
| Dimensions | 260 x 190 x 60 mm |
| Weight | 2.35 kg with battery |
Viavi JD723C Options:
- JD720C003 - Bluetooth connectivity
- JD720C004 - USB GPS connectivity
- JD720C005 - High-power CW signal generator
- JD720C006 - Wi-Fi connectivity
- JD720C007 - TestWizard (not available in EU from 1 July 2017)
The Viavi CellAdvisor JD723C is a rugged, lightweight cable and antenna analyser for cell-site installation covering 100 MHz to 2.7 GHz. It combines 1-port line sweep (return loss, VSWR, DTF, cable loss), RF and optical power measurement and fibre inspection with the P5000i microscope. It is cloud-enabled via StrataSync and offers PDF/HTML reporting.
The JD723C is the entry model of the JD720C series and does not support 2-port gain/insertion loss. Optional Bluetooth, Wi-Fi and USB GPS connectivity are available; applications include cell-site feedline verification, DAS validation and NFC antenna testing.
Testwall can supply the used Viavi JD723C, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Viavi JD723C.
