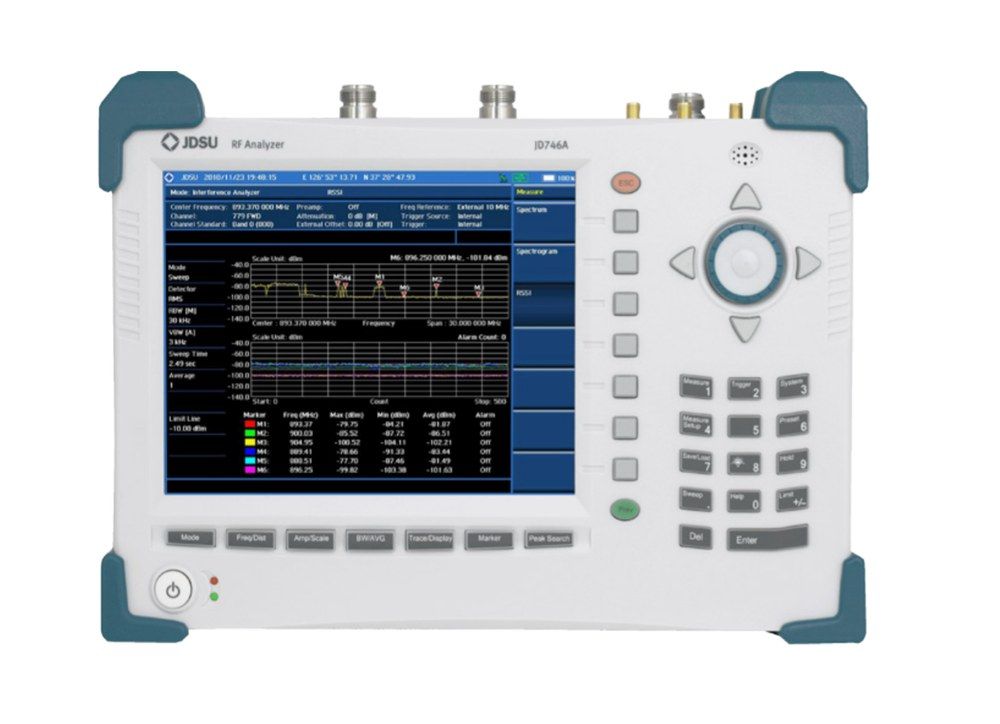

Viavi JD746A
| Attribute | Value |
|---|---|
| Spectrum Analyser Range | 100 kHz to 4 GHz |
| DANL | -140 dBm (10 MHz to 2.3 GHz, preamp off); -155 dBm preamp on |
| Cable & Antenna Range | 5 MHz to 4 GHz |
| DTF Range | Up to 1,500 m |
| Power Meter | Internal sensor 10 MHz to 4 GHz, -120 to +20 dBm |
| Display | 8 in, 800 x 600, LED backlight (resistive touch from s/n BEK11791) |
| Battery | > 3 hours typical |
| Dimensions | 295 x 195 x 82 mm |
| Weight | < 4 kg with battery |
Viavi JD746A Options:
- JD746A001 - 2-port transmission measurement (requires dual-port cal kit)
- JD746A002 - Bias tee (requires 001)
- JD746A003 - CW signal generator
- JD746A006 - Bluetooth connectivity
- JD746A010 - GPS receiver and antenna
- JD746A011 - Interference analyser
- JD746A012 - Channel scanner
- JD746A013 - Optical power meter (requires MP-60/MP-80 sensor)
The Viavi (JDSU) CellAdvisor JD746A is an RF analyser combining a 100 kHz to 4 GHz spectrum analyser, 5 MHz to 4 GHz cable and antenna analyser and 10 MHz to 4 GHz power meter. It is intended for base station installation, acceptance testing and physical-layer troubleshooting. A built-in preamplifier and optional interference analyser allow signals down to -155 dBm to be identified and located.
Unlike the JD745A/B base station analysers it has no technology-specific signal demodulation options; options add 2-port transmission, bias tee, CW generator, GPS, interference analysis, channel scanner and optical power metering.
Testwall can supply the used Viavi JD746A, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Viavi JD746A.
