Vitrek 951I
| Attribute | Value |
|---|---|
| Voltage Measurement Range | Up to 10 kV AC/DC |
| Current Measurement Range | Up to 30 mA AC/DC |
| Frequency Range | 25 Hz to 1000 Hz |
| Test Functions | AC Hipot, DC Hipot, Insulation Resistance, Ground Bond, Continuity |
| Insulation Resistance Range | Up to 50 TΩ |
| Ground Bond Test Current | Up to 30 A AC |
| Number of Test Steps | Up to 100 programmable test steps per sequence |
| Interface/Connectivity | USB, RS-232, Handler I/O, optional IEEE-488 (GPIB) |
| Display | Color touchscreen LCD display |
| Power Requirements | 100–240 V AC, 50/60 Hz |
Vitrek 951I Options:
- 951I - GPIB-9 - Optional GPIB Interface
- 951I - 500VA - 500VA Output Option
- 951I - AC-2 - 200mA 2 KVAC Max Output Option
- 951I - AC-30 - 30KVAC External Option
- 951I - RPOO-95 - Rear Panel Only Output Terminals
- 951I - HSS-1 - High Side Current Measurement (for grounded loads)
- 951I - PMT-1 - Pulse Mode / High Speed Flash Test Option
- 951I - ISO-CALN-95X - ISO 17025 Accredited Cal Cert (with purchase)
| Model | 951I |
|---|

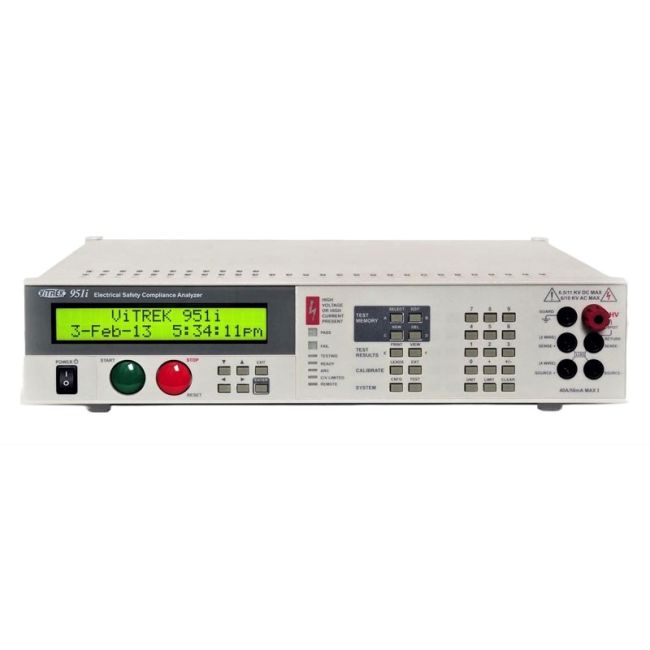

The Vitrek 951i Electrical Safety Analyzer is engineered with advanced DSP technology, offering precise AC/DC voltage outputs, 6.5kVDC with 50mA source current, and ultra-low leakage current measurement down to 100 pico-amps. Its integrated insulation resistance measurement up to 1 TΩ, 4-wire milli-ohmmeter up to 100kΩ, and optional 40A ground bond function ensure exceptional testing performance.
Designed for demanding applications, the Vitrek 951i provides rapid DUT charging/discharging and supports up to 256 test points directly, expandable to 640 with QuickTest Pro software. It delivers accuracy, speed, and flexibility in electrical safety compliance testing.
Testwall can supply the used Vitrek 951i Electrical Safety Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Vitrek 951i Electrical Safety Analyzer.
