Vitrek PA900
| Attribute | Value |
|---|---|
| Voltage Measurement Range | Up to 2000 V RMS |
| Current Measurement Range | Up to 30 A RMS direct input; extended range via external shunts or current transformers |
| Frequency Range | DC and 0.1 Hz to 2 MHz |
| Power Accuracy | ±0.04% of reading basic power accuracy |
| Number of Input Channels | Up to 8 wattmeter channels configurable per unit |
| Display | Large color touchscreen LCD display |
| Interfaces & Connectivity | USB, LAN (Ethernet), and optional GPIB interface for remote control and data acquisition |
| Measurement Parameters | Volts, Amps, Watts, VA, VAR, Power Factor, Phase Angle, Harmonics (up to 500th order), and more |
| Sampling Rate | Up to 2 MS/s per channel |
| Input Impedance | Approximately 2 MΩ voltage input impedance |
Vitrek PA900 Options:
- PA900 - SD - Standard Dual Current Channel Card
- PA900 - SH - Standard High Current Channel Card
- PA900 - SX - Standard External Current Channel Card
- PA900 - AD - Hi Accuracy Dual Shunt Channel Card
- PA900 - AH - Hi Accuracy High Current Channel Card
- PA900 - AX - Hi Accuracy External Current Channel Card
- PA900 - WD - Wideband Dual Current Channel Card
- PA900 - WH - Wideband High Current Channel Card
- PA900 - WX - Wideband External Current Channel Card
- PA900 - MT - Motor Transducer Channel Card
- PA900 - H500 - Increases Capability up to 500 Harmonics
- PA900 - EN - Adds Built-in EN61000 Compliance Computations
- PA900 - LPA-1 - Universal Load Power Adaptor
- PA900 - HC-7 - Hard Carrying/Shipping Case with Die Cut Foam
- PA900 - RM-7 - 4U (7"H) 19" W Rack Mount Kit
- PA900 - ISO-CALN-C1 - Channel Card ISO 17025 Cal with Data (with purchase)
| Model | PA900 |
|---|

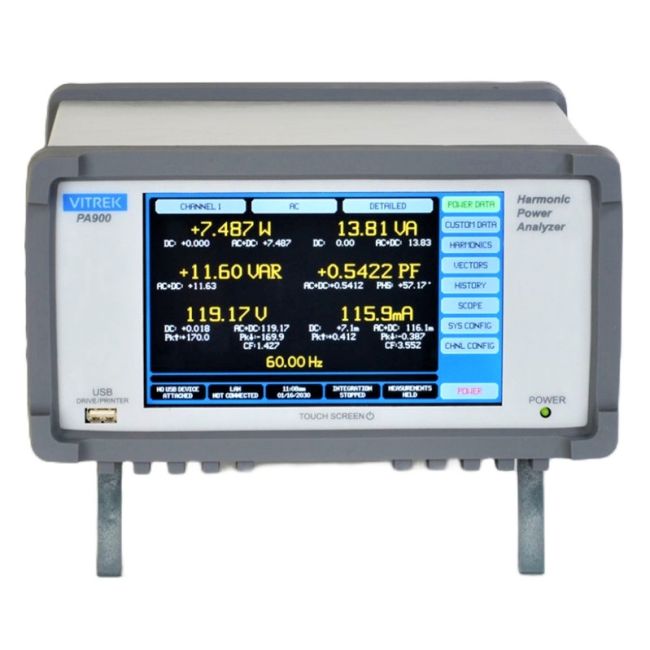

VITREK PA900 Precision Power Analyzer
The Vitrek PA900 delivers multi-channel, high-accuracy, wideband performance €“ to tackle the toughest energy measurement applications. . For tackling tough power factor, low phase angle and high crest factor loads €”the PA900 is unbeatable. Offering full performance for crest factors as high as 30:1 - the PA900 places the advantage of superior power measurement capability squarely in the palm of your hands or if you prefer €”at the tip of your finger. To meet advanced power harmonics To meet advanced power harmonics requirements, the PA900 displays up to 500 harmonics even at aviation power frequencies.
One of the Vitrek PA900 newest features is the built-in compliance test for various industry leading environmental performance standards. The PA900 uses a modular design approach to provide the performance you need at a price that meets your budget. A single PA900 mainframe holds up to 4 Channels of power measurement in any combination of three diffe Channel types.
€¢ The S type Channel card provides economical, high performance power measurement with a basic 0.1% accuracy and enough bandwidth to handle waveforms up to 1 MHz.
€¢ The A type ultra-precision Channel card offers a two year accuracy rating of 0.03% of reading and bandwidth up to 1 MHz.
€¢ The W type Wideband Channel card performs precision power measurements on the toughest real world waveforms, with sampling speed fast enough to tame waveforms up to 5Mhz
Each of the above Channel cards is available with your choice of three diffe cur input options. The D cur input option uses an auto-ranging Dual Shunt system to deliver precision cur measurement from as low as 0.1micro-amp resolution on the 1 amp range up to 20 amps rms on the high range. For higher cur measurements, the H cur input option operates from 10 micro-amp resolution up to 30 amps rms. The X input cur option is designed to provide optimum compatibility with a wide range of external shunts and cur transducers. Vitrek makes it easy for you to configure a harmonic power analyzer that is perfect for your application.
Specifications for the VITREK PA900 Precision Power Analyzer Include:
-
Highest Precision with Industry leading noise floor €“ as low as 1ppm vs 300ppm or more on competitive units
-
Up to 500 Harmonics at 400Hz, meets Airbus avionics harmonics measurement criteria. Bar graph also features fingertip selectable numeric amplitude and phase data
-
Large, Hi-Resolution Color Display shows all the data you want with an easy-to-use touchscreen user interface to get you up and testing in no time
-
Modular design lets you choose up to 4 Power Measurement Channel Cards in any combination of 3 diffe Channel Card types
