Voltech

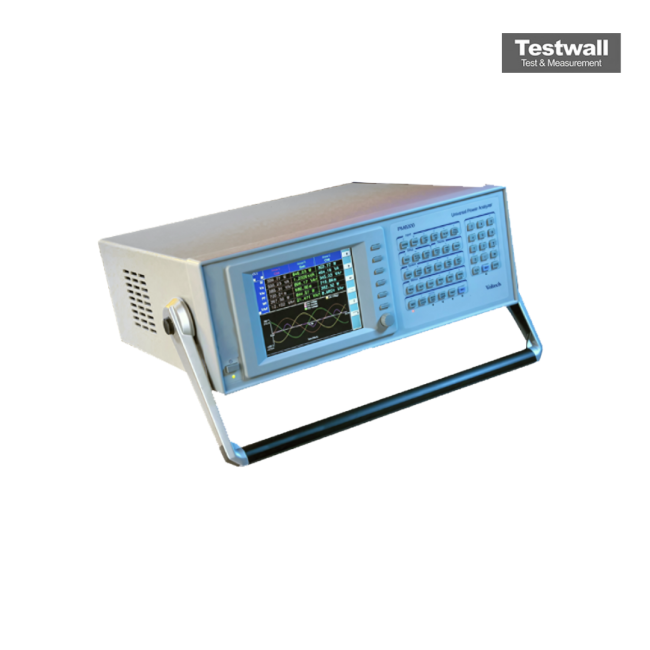

Voltech PM6000
Up to 6 voltage and 6 current input channels Number of Channels
Up to 3000 V RMS Voltage Measurement Range
Up to 100 A RMS direct input Current Measurement Range
DC and 0.1 Hz to 3 MHz Frequency Range
0.04% of reading Basic Power Accuracy
| Attribute | Value |
|---|---|
| Number of Channels | Up to 6 voltage and 6 current input channels |
| Voltage Measurement Range | Up to 3000 V RMS |
| Current Measurement Range | Up to 100 A RMS direct input |
| Frequency Range | DC and 0.1 Hz to 3 MHz |
| Basic Power Accuracy | 0.04% of reading |
| Bandwidth | 3 MHz |
| Display | Large color LCD touchscreen display |
| Interface/Connectivity | USB, LAN (Ethernet), and GPIB interfaces for remote control and data transfer |
| Power Measurements | Measures real power, apparent power, reactive power, power factor, and harmonics up to the 500th order |
| Input Impedance | 1 MΩ voltage input impedance |
| Model | PM6000 |
|---|
