Wavetek

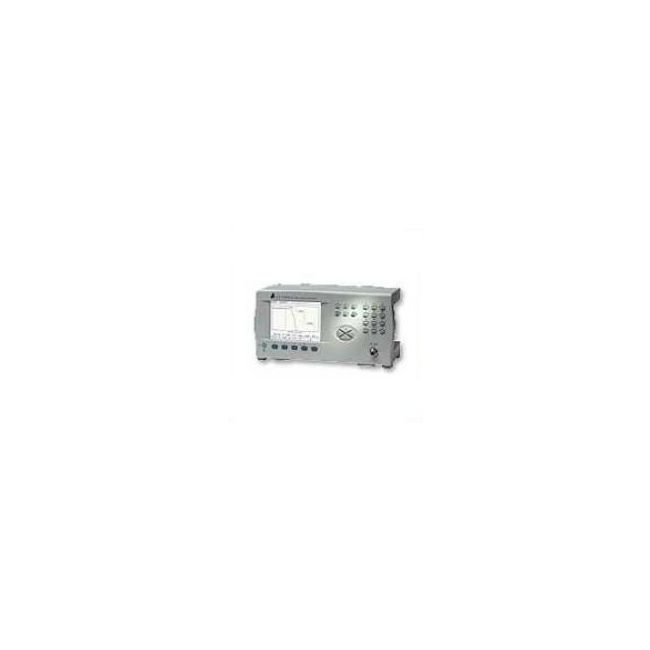

WAVETEK / WILLTEK 4201S
GSM Tri-band Radio Communications Test Set
800 MHz to 2500 MHz Frequency Range
Cellular / PCS Network Analyzer Measurement Type
GSM, GPRS, EDGE, UMTS, CDMA, WCDMA Supported Standards
Color LCD Touchscreen Display
Rechargeable Li-Ion Battery / AC Adapter Power Supply
| Attribute | Value |
|---|---|
| Frequency Range | 800 MHz to 2500 MHz |
| Measurement Type | Cellular / PCS Network Analyzer |
| Supported Standards | GSM, GPRS, EDGE, UMTS, CDMA, WCDMA |
| Display | Color LCD Touchscreen |
| Power Supply | Rechargeable Li-Ion Battery / AC Adapter |
| Battery Life | Approximately 4 hours of continuous operation |
| Interface / Connectivity | USB, RS-232 Serial Port |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Weight | Approximately 2.5 kg (5.5 lbs) |
| Dimensions | Approximately 270 mm x 190 mm x 70 mm |
WAVETEK / WILLTEK 4201S Options:
- 4201S - M 248 500 - Upgrade 4201S to 4202S
- 4201S - M 101 351 - 4201S AM Signal Generator package (incl. option)
- 4201S - M 248 507 - 4271 AM Signal Generator Option
- 4201S - M 248 506 - 4271 AM Signal Generator upgrade
- 4201S - M 248 418 - 4260 GSM 850 Option
- 4201S - M 248 404 - 4280 GSM 850 Upgrade Kit
- 4201S - M 897 136 - 4272 Result Upload Option
- 4201S - M 248 505 - 4273 Detuning Option
- 4201S - M 204 094 - 4274 DC Option
- 4201S - M 248 748 - 4275 Remote Power Option
| Model | 4201S |
|---|
The Wavetek 4201S? is used for testing all GSM bands (GSM 900/1800/1900, including E-GSM and GSM-R. The Wavetek 4201S can be used via the RS-232-C interface, allowing remote operation. Using the SCPI instruction set or the LabWindows driver allows individual test procedures to be used. In addition to the already complete testing capabilities of the 4201S, the 4202S adds Data and SMS testing.
All our used & refurbished equipment is subject to electrical and cosmetic refurbishment in our In House Calibration Laboratory. We offer full warranty on all our equipment, supported by our Calibration & Repair Laboratory. Free shipping in the UK is standard. Please call or email us for a quick price quote
