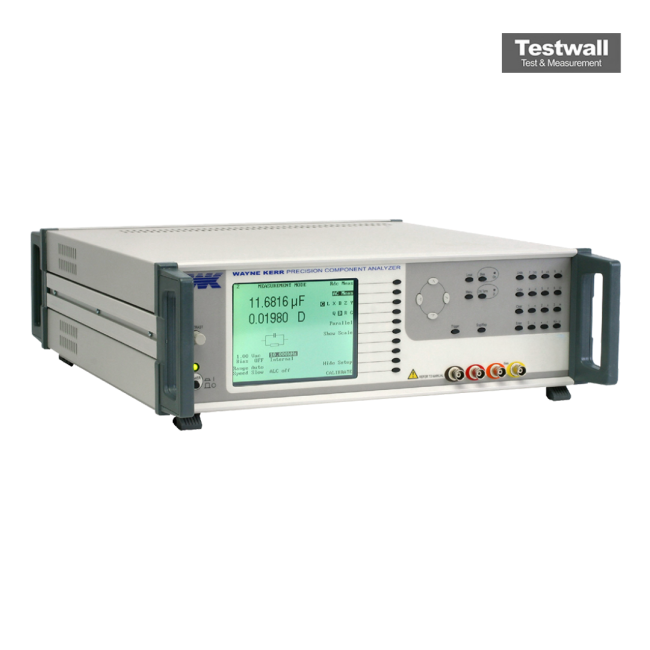

Wayne Kerr 6245B
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 2 MHz |
| Measurement Parameters | L, C, R, Z, D, Q, θ, G, B, X, |Y|, |Z|, DCR |
| Basic Accuracy | 0.1% |
| Test Signal Level | 5 mV to 1 V RMS (voltage mode), 0.1 mA to 20 mA RMS (current mode) |
| DC Bias | Internal: 0 to ±2 V; External: 0 to ±40 V |
| Display | Dual parameter simultaneous display with numeric and bar graph readout |
| Interface | IEEE-488 (GPIB), RS-232, Handler interface |
| Equivalent Circuit Analysis | Series and parallel equivalent circuit modes |
| Measurement Speed | Fast, Medium, and Slow measurement modes |
| Power Requirements | 90–264 V AC, 47–63 Hz |
| Model | 6245B |
|---|
The Wayne-Kerr 6245B is a precision LCR meter engineered for accurate measurement of inductance, capacitance, and resistance across a wide frequency spectrum. Its advanced design ensures high accuracy, fast performance, and repeatability, making it ideal for research laboratories and production environments.
With broad frequency coverage, intuitive operation, and rapid testing capability, the 6245B supports both component characterization and high-volume testing, delivering reliable results in demanding applications.
Testwall can supply the used Wayne-Kerr 6245B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Wayne-Kerr 6245B.
