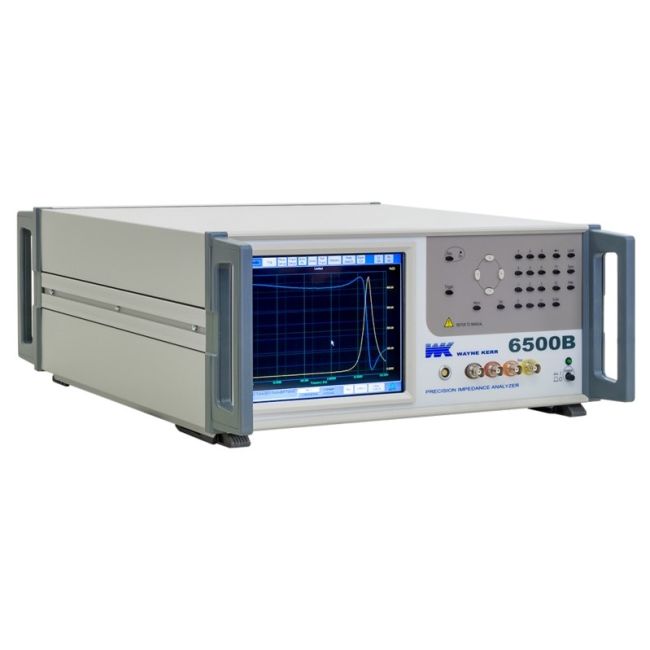

Wayne Kerr 6510B
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 500 kHz |
| Measurement Parameters | L, C, R, Z, D, Q, θ, ESR, G, B, Y |
| Basic Accuracy | 0.1% |
| Test Signal Level (Voltage) | 5 mV to 1 V RMS |
| Display | Dual parameter LCD display |
| DC Bias | Internal DC bias up to 2 V; External DC bias up to 40 V |
| Interface | IEEE-488 (GPIB) and RS-232 |
| Measurement Speed | Fast, Medium, and Slow measurement modes |
| Equivalent Circuit Modes | Series and Parallel |
| Power Supply | 90–264 V AC, 47–63 Hz |
Wayne Kerr 6510B Options:
- 6510B - /B1 - Bin handler (non-isolated 5V), 25-way D-type connector
- 6510B - /B2 - Bin handler (isolated 24V), 25-way D-type connector
- 6510B - /D1 - DC Bias (0 to +40V, 0 to +100mA)
- 6510B - /D2 - DC Bias (-40V to +40V)
- 6510B - /E - Equivalent Circuit Analysis firmware option
- 6510B - /K - Material Test firmware option
- 6510B - /M - Multi-Measurement Mode firmware option
- 6510B - /Y - Polar Complex Plots firmware option
| Model | 6510B |
|---|
The Wayne-Kerr 6510B delivers precise LCR measurements with stable performance across all test ranges. Designed for durability, it ensures long-term use in demanding environments, making it suitable for research, manufacturing, and educational applications. Simple controls allow engineers to operate efficiently while maintaining accuracy and consistency.
Ideal for reliable component testing, the Wayne-Kerr 6510B guarantees precision measurement of inductance, capacitance, and resistance values. Its user-friendly interface enhances productivity in both laboratory and production settings.
Testwall can supply the used Wayne-Kerr 6510B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Wayne-Kerr 6510B.
